1961 Corvette C1 Restoration and Restomod

1961 Corvette C1 Restoration and Restomod

After some discussions with the owner, the following brief was given.

"Make it look good and drive Good"

We do like these kind of projects, so the following is underway:

  • Full Repair and Restoration of the chassis, but with a new front clip.  This will allow for easier conversion to Disc Brakes all Round.
  • Modern Coil over Suspension Conversion
  • Ford 9" rear suspension setup
  • The Aforementioned disc brake conversion with power brakes.
  • Tremec 5 Speed Gearbox conversion with Hydraulic clutch for easier operation.
  • Power Assisted Steering
  • Body to be Fully Repaired and Painted.
  • Engine Fully Reconditioned with conversion to EFI.
  • Hood Replaced and Interior Tidy.
  • Totally Rewired.
  • Wheels to be either reconditioned or replaced TBC.
  • New exhaust system
  • Air Conditioning

The work will be quite involved as the chassis is very corroded.

Expected completion is around the Spring 26. (revised due to extensive bodywork repairs that were required)



The Strip Down.

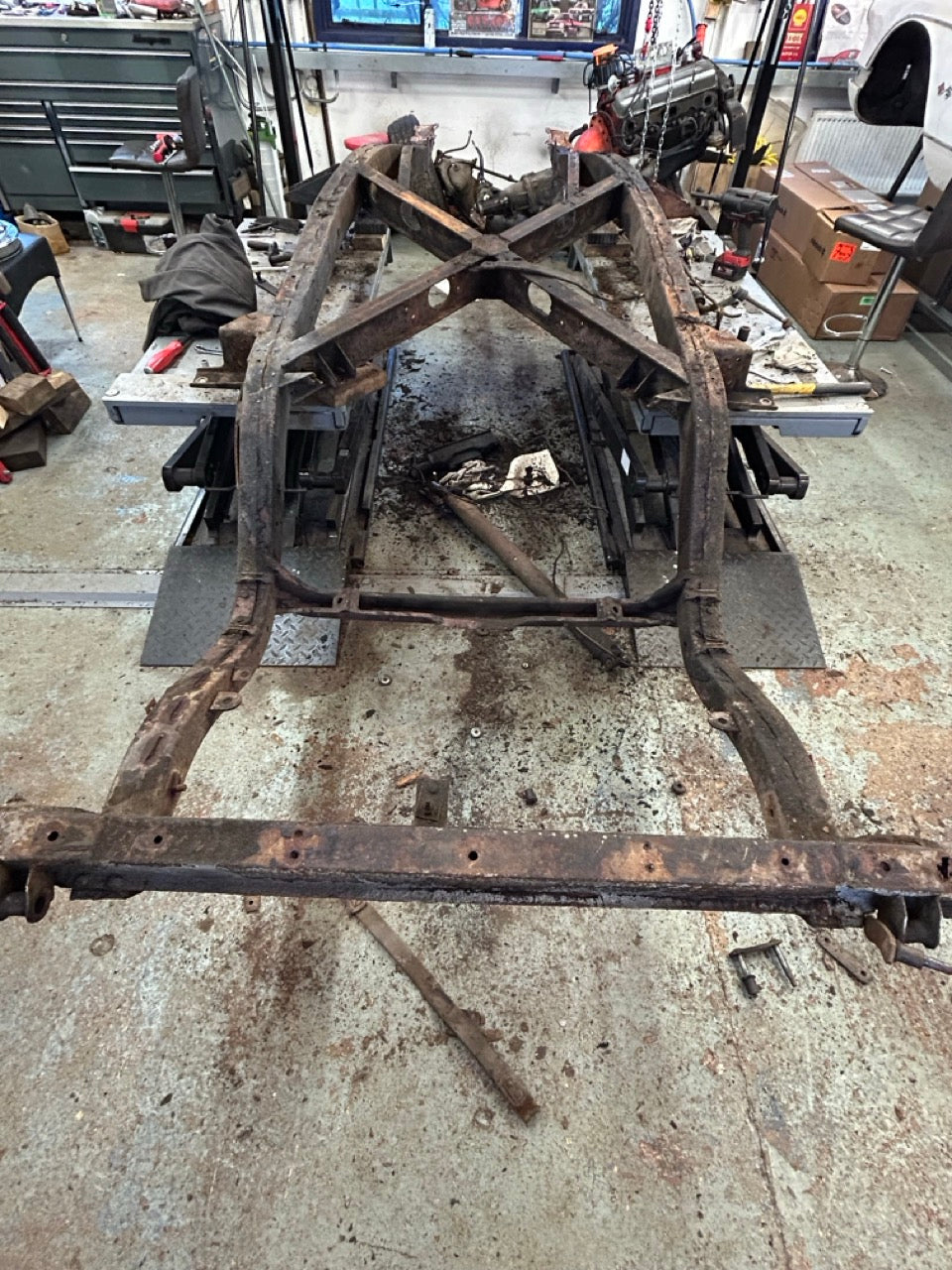

1961 Corvette Chassis Rusted

Chassis

Considerable repair and welding was required to ensure the chassis was stable and strong.

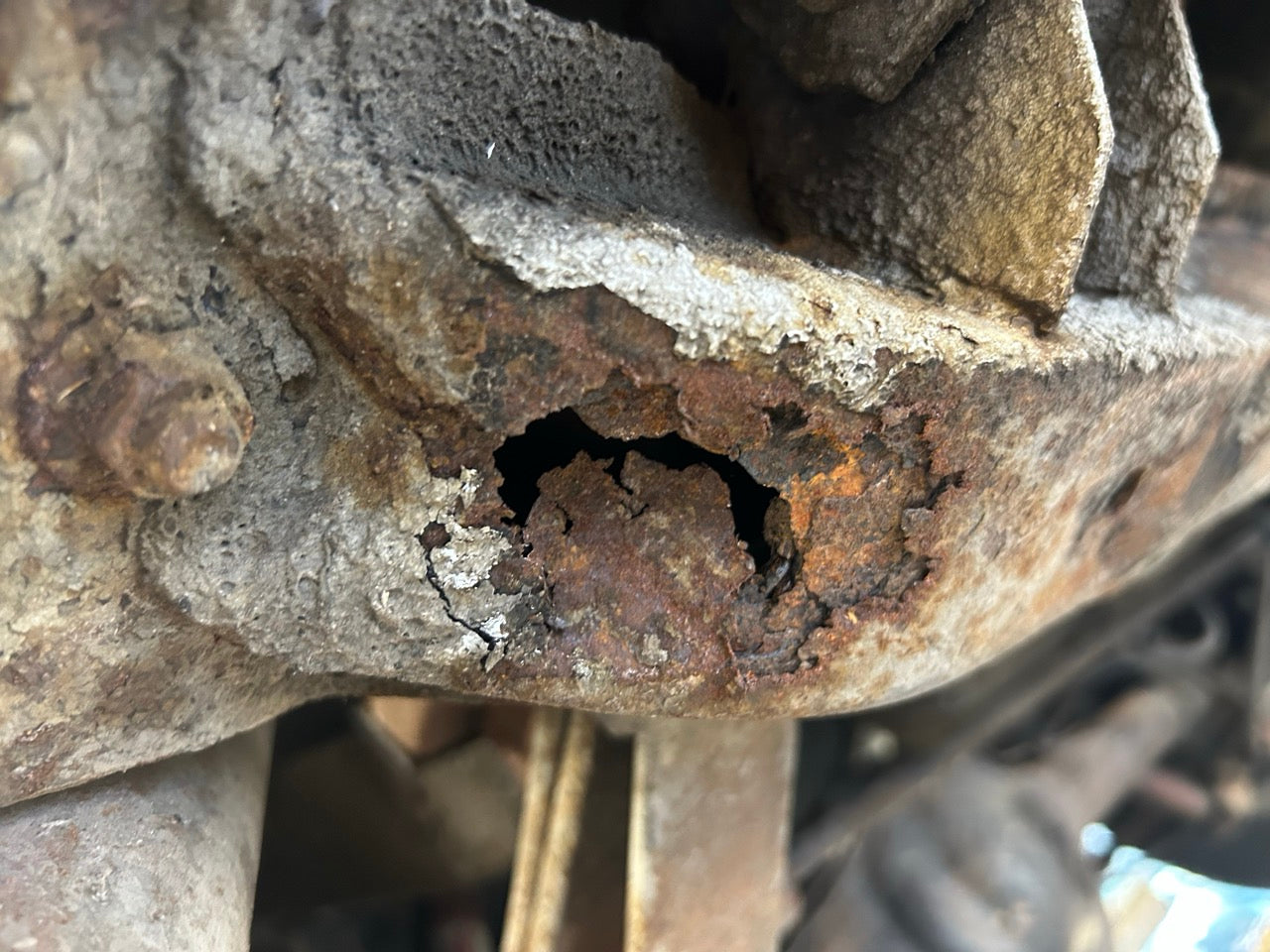

1961 Corvette Chassis Corrosion

Chassis

Further images highlighting the rod and challenges ahead.

1961 Corvette Body Mounts Broken

Body Mounts

Broken in various places.

1961 Corvette Chassis Sandblasted

Chassis Repairs

Shot Blasted, Ready for Welding up and incorporating changes for transmission etcc.

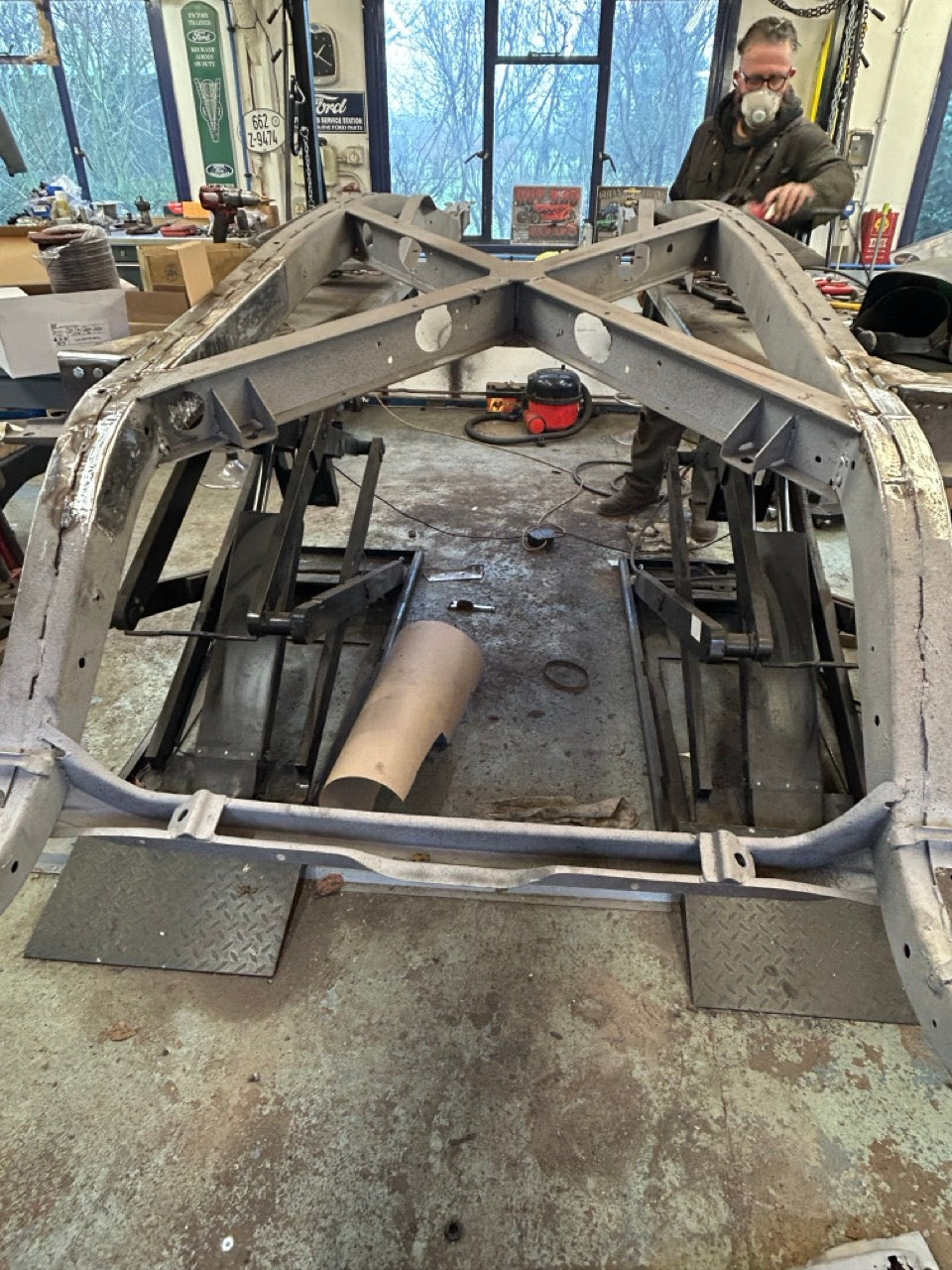

1961 Corvette Chassis Repair

Chassis Repairs

On going repair works.

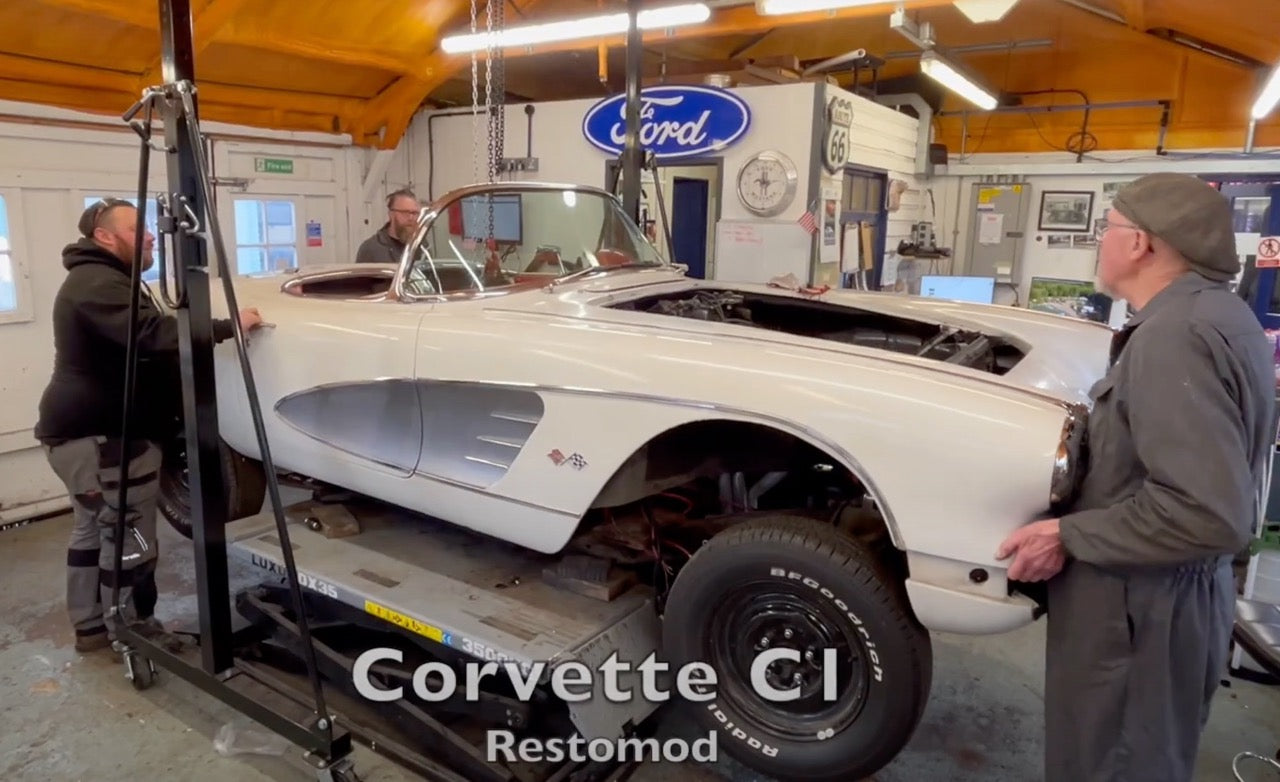

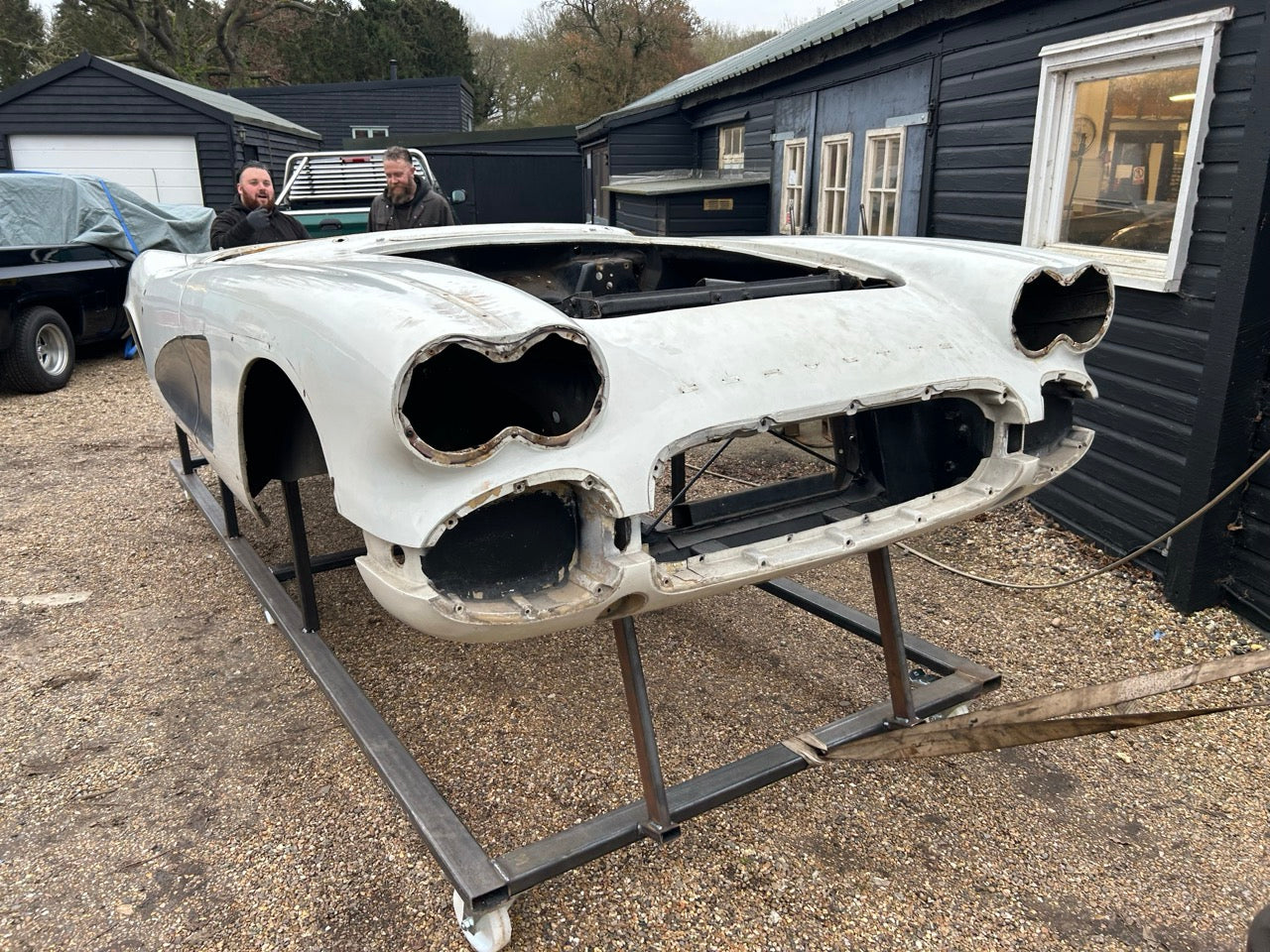

1961 Corvette Body Off

Body Mounted on Frame

Upgrades

Once the chassis repair work was completed, the focussed then moved to the extensive list of upgrades to turn the C1 into a slightly more modern classic. These upgrades will help ensure its easier to drive and easier to stop.

Below are some of the images on the upgrades that took place.

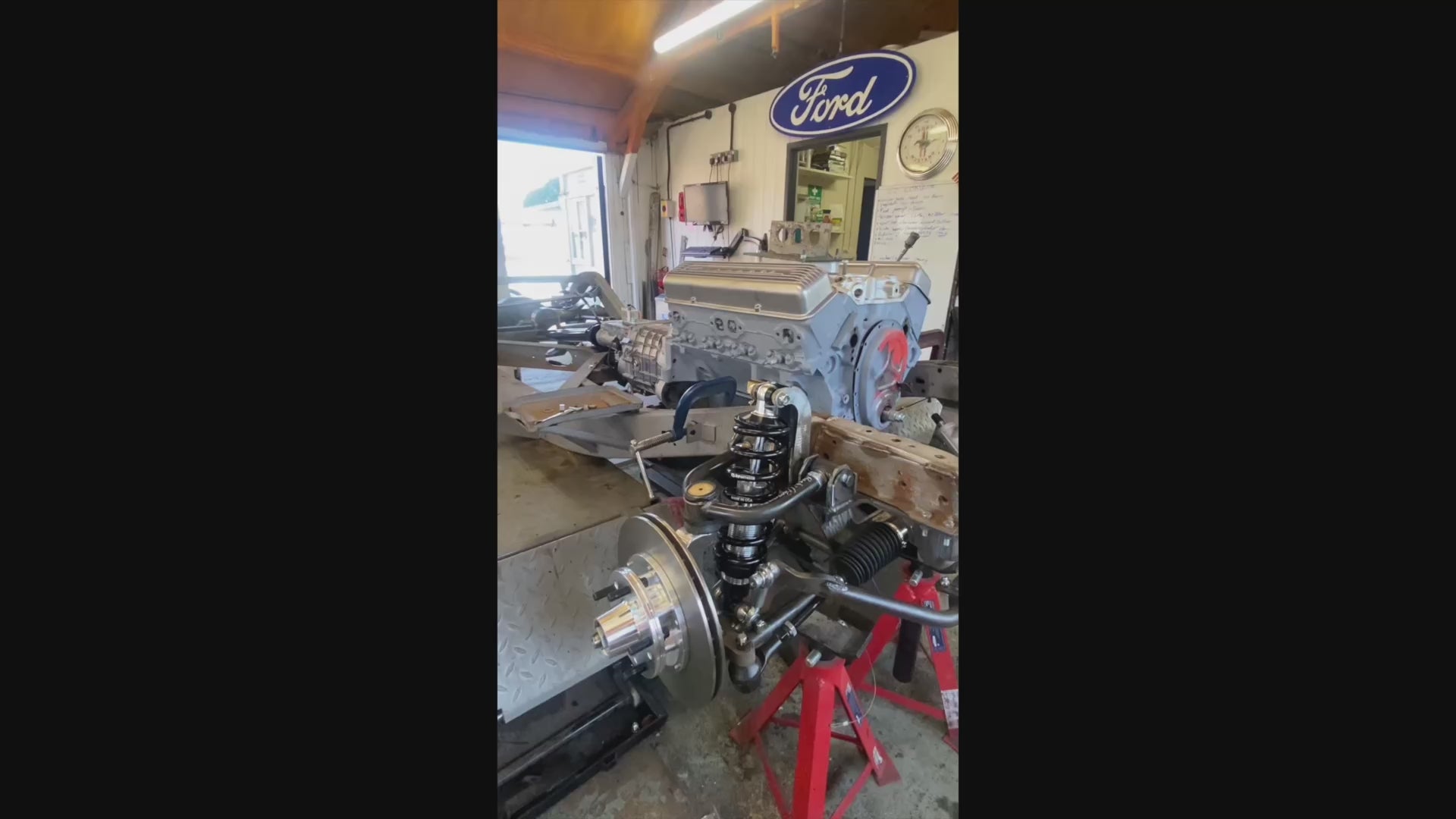

Upgrades (Disc Brakes, Coil Overs etc.)

1961 Corvette Restomod

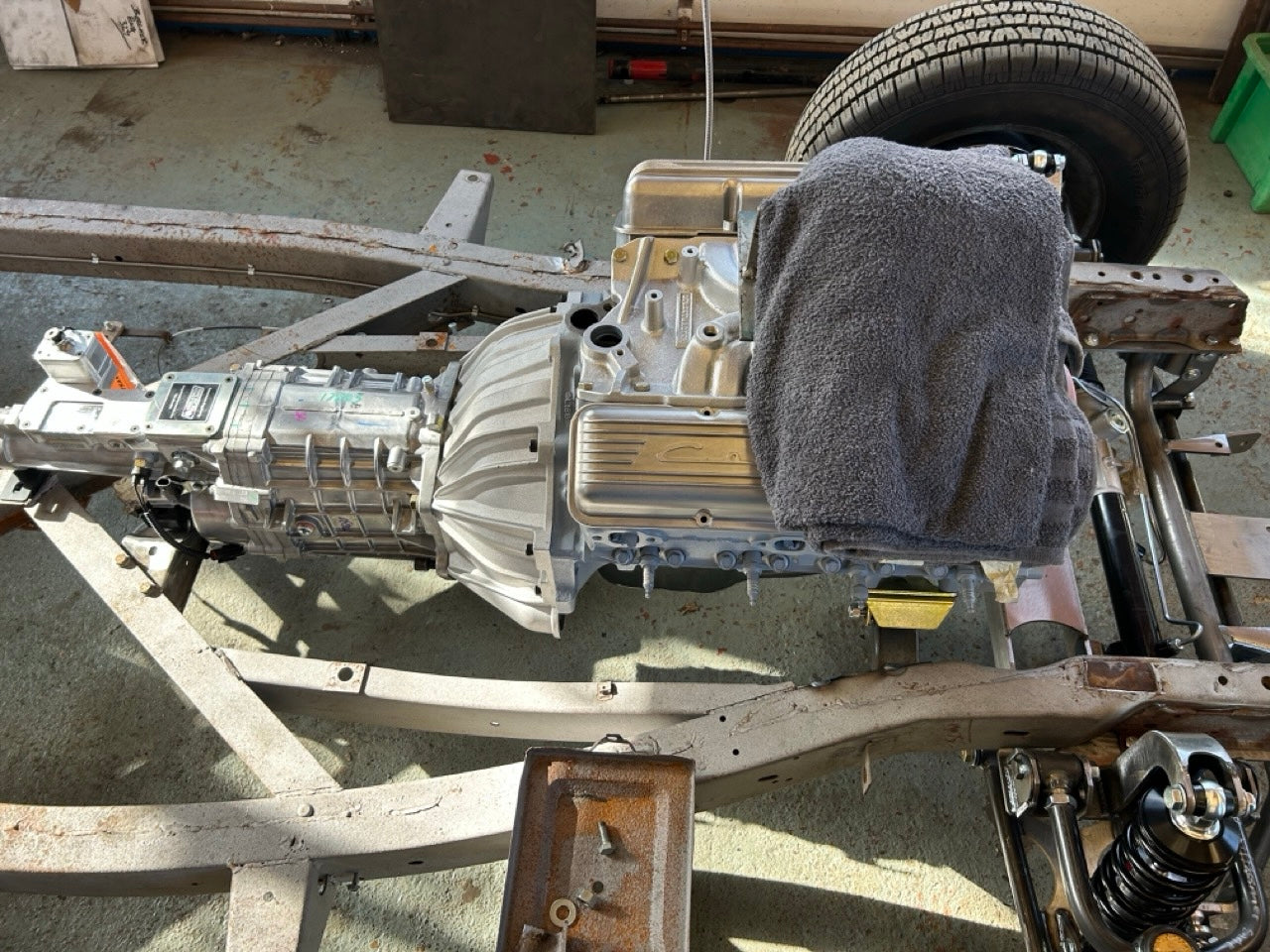

Corvette C1 Engine Recondition
Corvette C1 Disc Brake Conversion
Corvette C1 Disc Brake Conversion

Full Disc Brake conversion has taken place with a dual circuit master cylinder to ensure the Corvette stops as well as it goes.

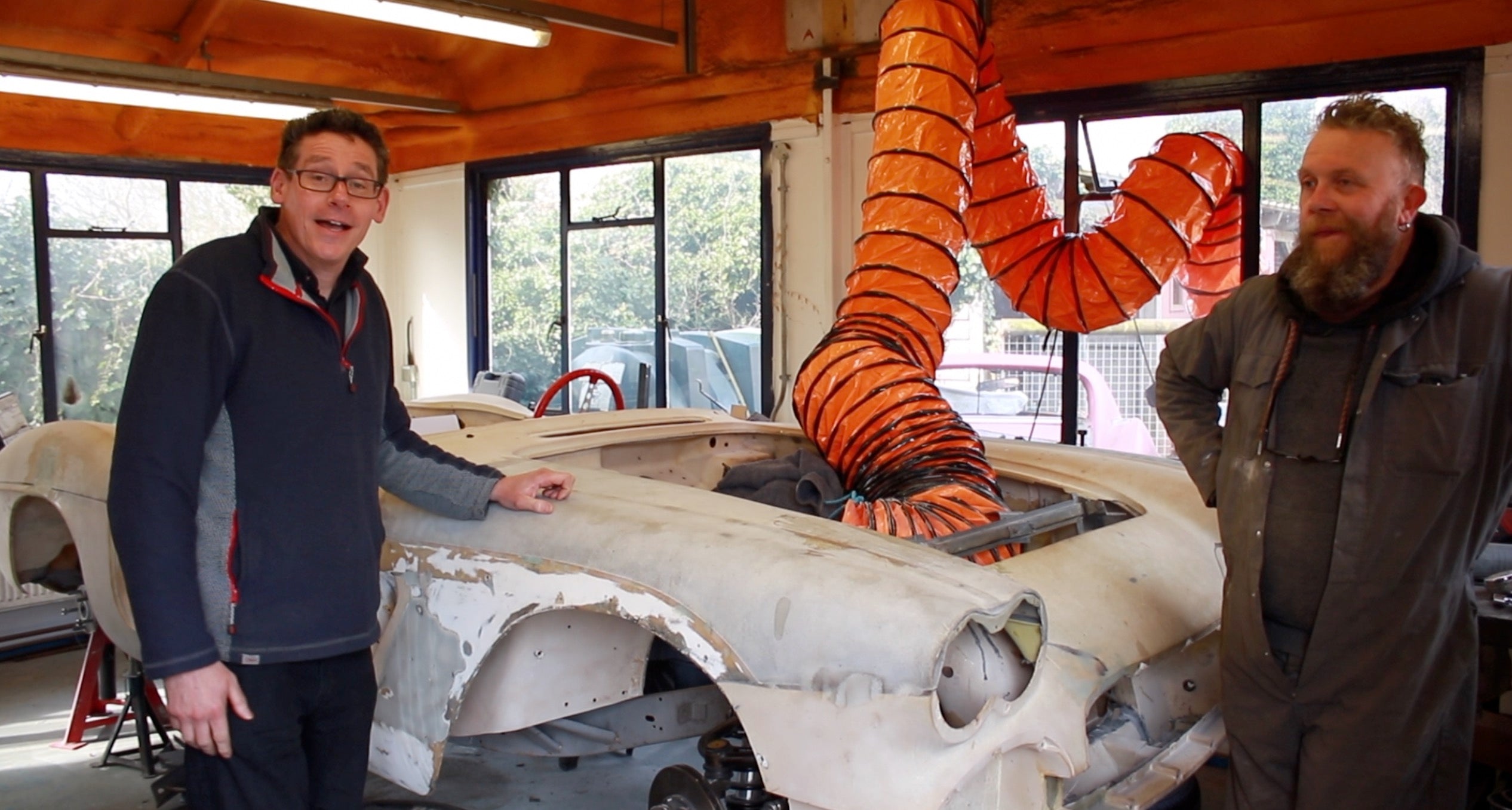

Corvette Fibreglass Body Repairs

One of the primary challenges of this project was the extensive bodywork repair required. As is often the case, the true extent of the damage was only revealed after stripping back the paint, uncovering several structural concerns. The body had clearly been involved in at least one previous accident and was poorly restored using mismatched new or second-hand panels, substandard joints, and dangerously thin fibreglass. Unfortunately, factory replacement panels were on a backorder of over 200 days. To avoid this massive delay, we consulted with the client and agreed to proceed with a meticulous, labor-intensive rebuilding of the existing fibreglass.200 days estimate) which would have sped up the process considerably.  Instead and in discussion with the customer, a time consuming process of repairing the fibreglass got underway.

1961 Corvette C1 Fibreglass Repairs
Corvette C1 Fibreglass Repair
C1 Corvette Fibreglass Repair
Corvette C1 Bodywork
Corvette Bodywork Fibreglass
Experienced Fibreglass Repairs Corvette

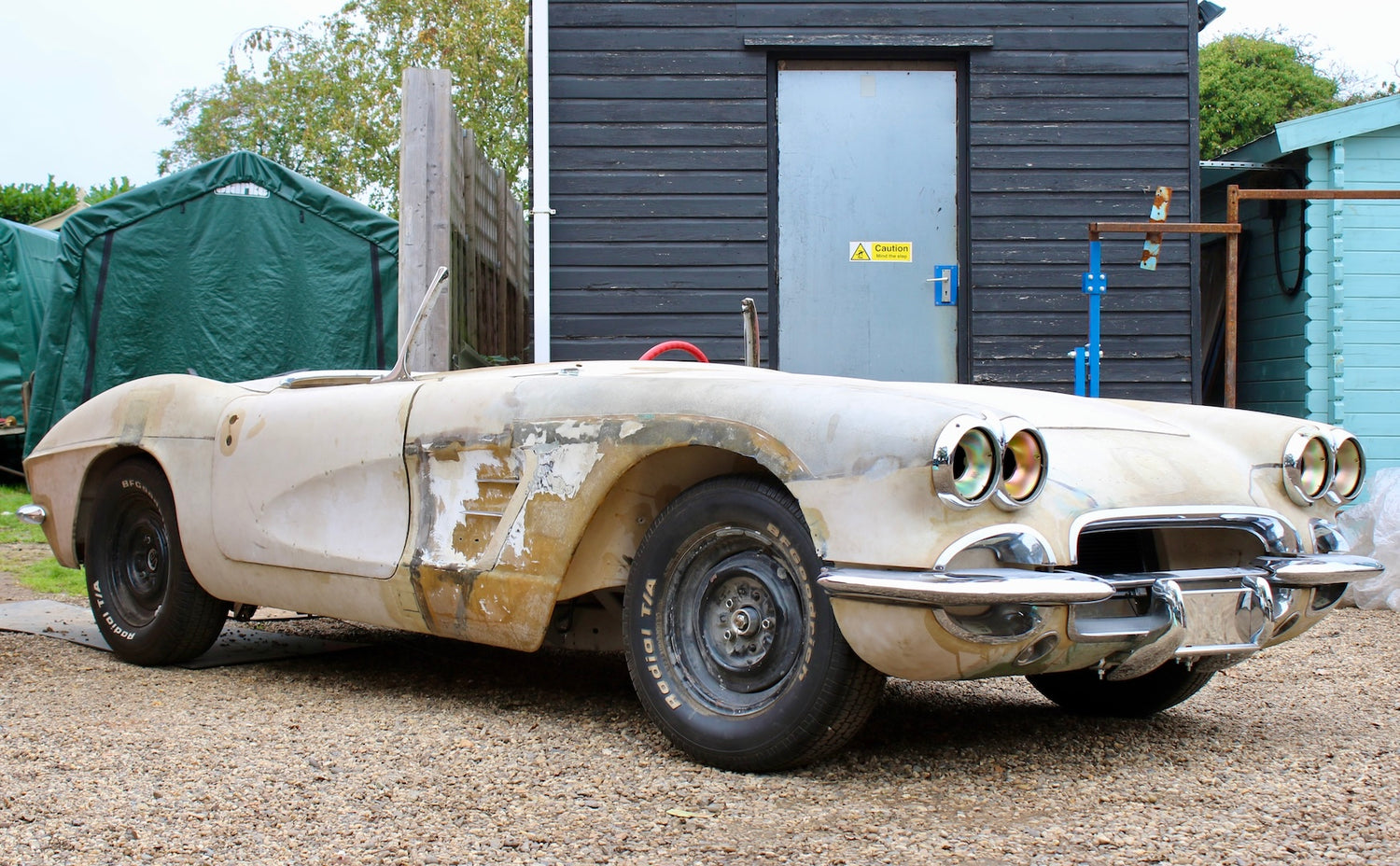

1961 Corvette C1 Rolling Chassis

Primary Fibreglass Repairs Complete

Everything test fitted and ready for the Corvette to be stripped down and painted from the bottom up.

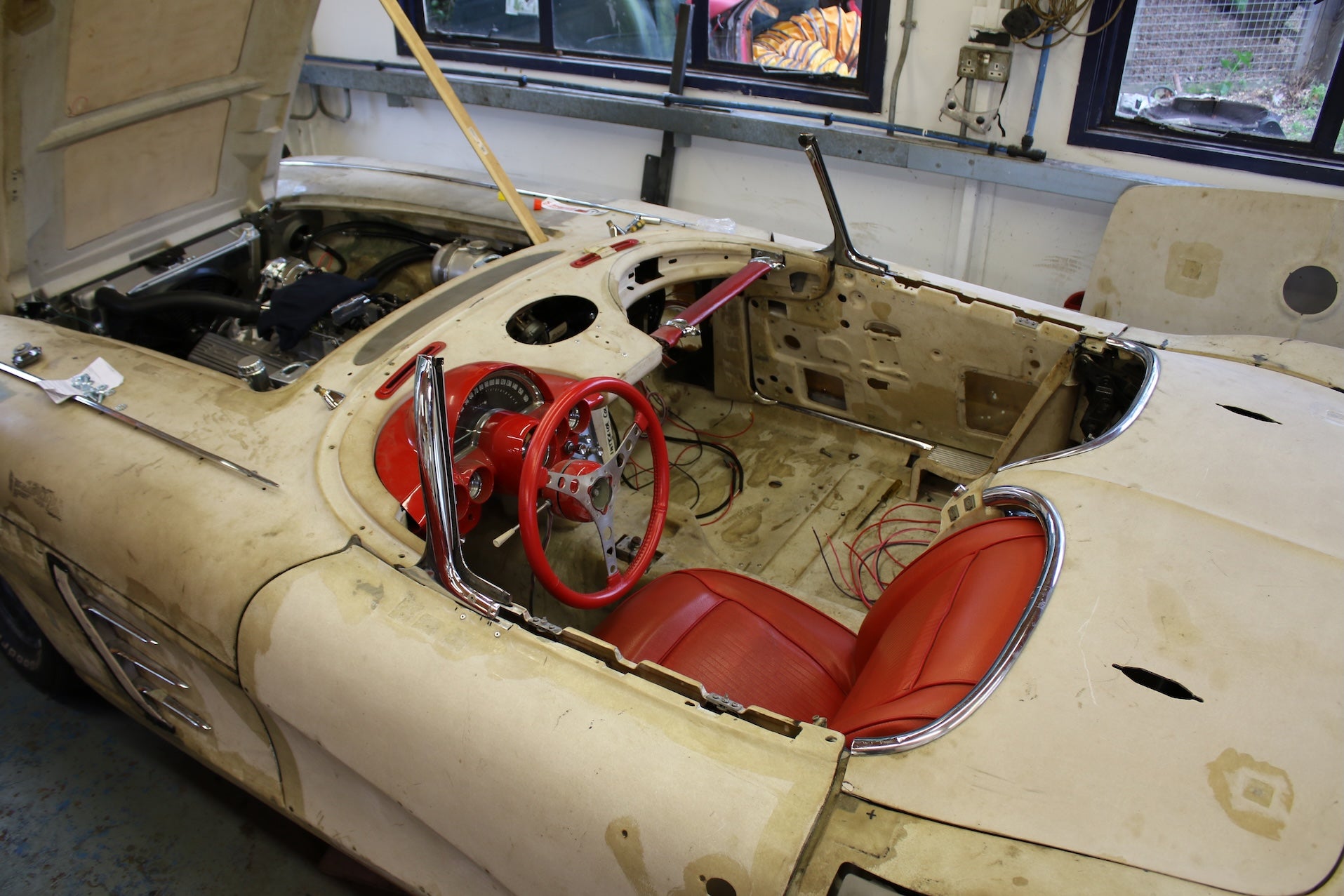

1961 Corvette C1 Interior
1961 Corvette C1 Front End Repair

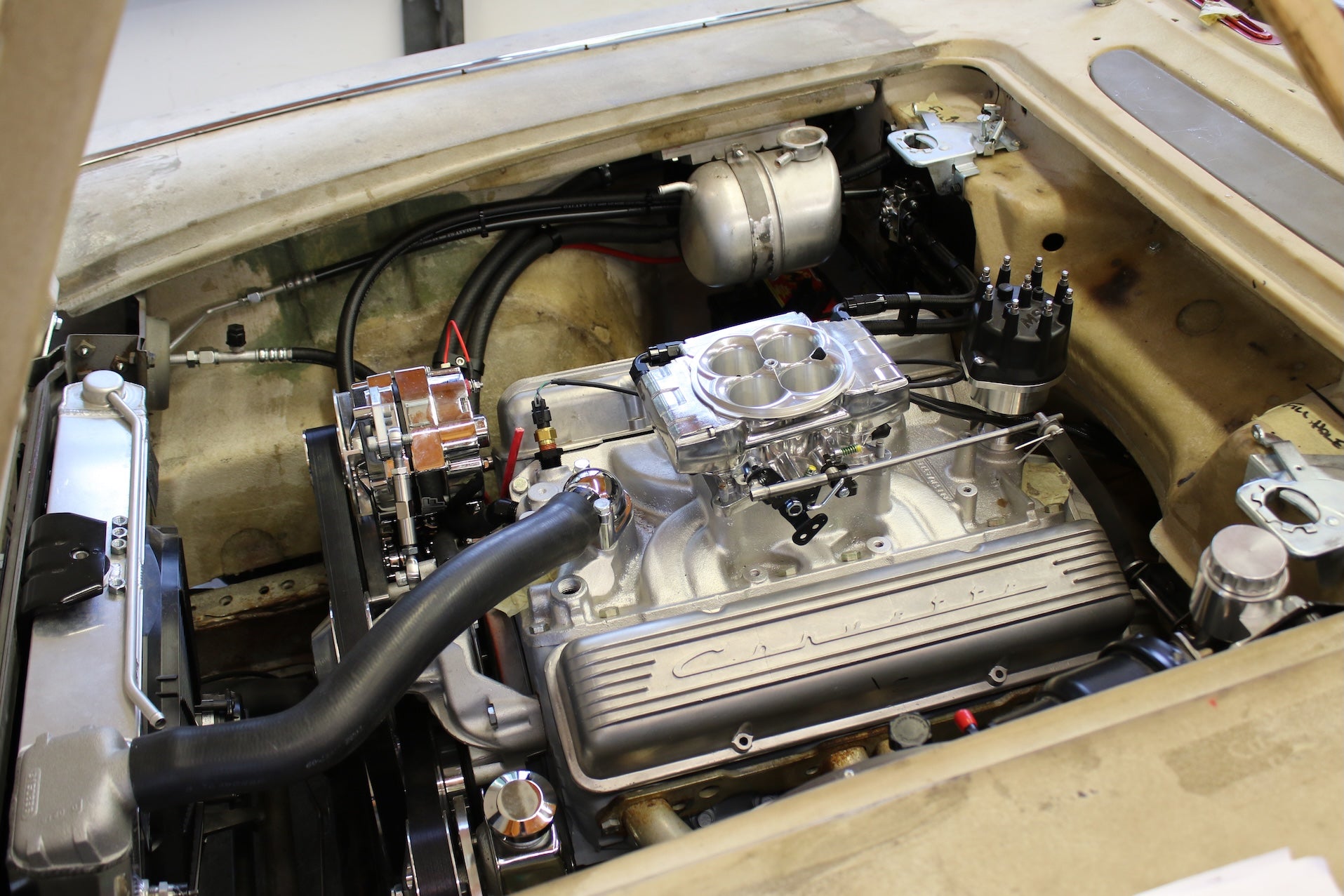

1961 Corvette Bonnet Hood Engine Bay
1961 Corvette Bonnet Hood Engine Bay
Corvette C1 Restoration
1961 Corvette Chassis Repair
1961 Corvette Paint

Surface Prep and Paintwork

With the major fiberglass repairs completed, the Corvette was sent to our friends at Concours Classics for surface preparation and painting. Although the cracks and major damage had been fixed, the entire body still required meticulous attention to address numerous smaller imperfections. Despite the car's relatively small size, smoothing out every last flaw was a painstaking process

1961 Corvette Fibreglass Work

Trim Fitting

Neither the original trim pieces or the supplied aftermarket parts actually fit.  So more custom work will be required.

Corvette 1961 C1 Restoration

Sanding / Smoothing Down

The very long process of working the shell to ensure all the imperfections and removed

Classic Corvette Repair

Meticulous Detail

Painting- The Colouring In.

UK Classic Corvette Repair

Final Primer

Masked up and final paint being applied

1961 Corvette Paint

White Coat Being Applied

Masked up, in the process of being painted.

Corvette Respray

Red being applied

Matching in with the interior and dash.  Keeping the original look.

UK Classic Corvette Respray

Louvers

Painted up

More Pictures Coming soon
