1/4" UNF Hex Set Screw (Fully Threaded Bolt) Zinc

1/4" UNF Hex Set Screw (Fully Threaded  Bolt) Zinc

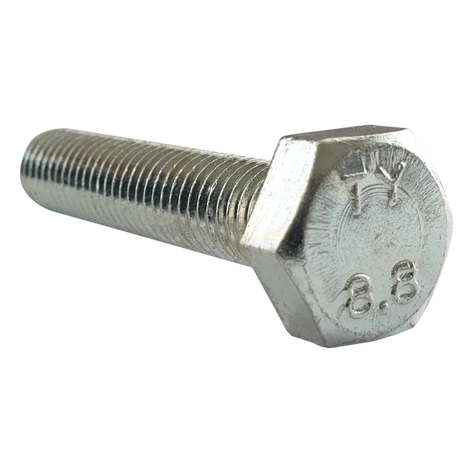

1/4″ UNF Hex Set Screw (Fully Threaded Bolt) Bright Zinc Plated

• 1/4 UNF hex set screw manufactured with a bright zinc plating (BZP) offering a mid-level corrosion resistance. Unlike hexagon bolts, which are partially threaded, the hex head set screw has a fine thread extending up to the underside of the head. This ensures a secure and tight fixing every time without the worry of running out of thread.

  Also known as a ‘fully threaded bolt’, the hex head also allows for higher torque to be applied with a range of conventional tools making them a versatile choice.

  Versatile and when coupled with the 1/4″ UNF nuts sees these hex head set screws widely used across many industries by DIY enthusiasts and professionals alike.

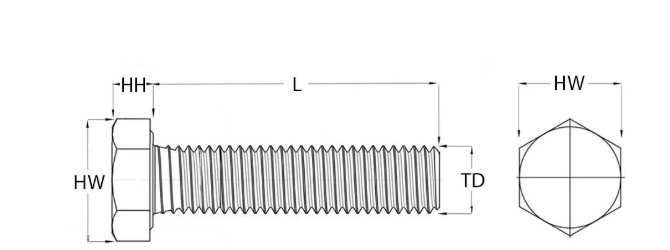

  1/4 UNF set screw specification

  • Thread diameter (TD): 1/4″ UNF

  • Head height (HH): 0.18″ max
  • Head width (HW): 0.43″ max
  • Thread Pitch (TP): 28 (threads per inch)
  • Material: Bright zinc plated steel (BZP)
  • Conformity: BS 1768
