• Air Shock Absorber Explorer 1991-2001, Mountaineer 97-01, Navajo 91-94 MA776
1 1

Monroe

Air Shock Absorber Explorer 1991-2001, Mountaineer 97-01, Navajo 91-94 MA776

Air Shock Absorber Explorer 1991-2001, Mountaineer 97-01, Navajo 91-94 MA776

£266.21 GBP
£262.28 GBP £266.21 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
We have 2 in stock

Part Number + Internal Code

067 03 000

Specification

Colour

Material

Fitment

Condition

  • New

Manufacturer Type

  • Aftermarket

Manufacturers Site (links off site):

Air Shock Absorber Explorer 1991-2001, Mountaineer 97-01, Navajo 91-94 MA776

Rear

Fits:

  • Ford Explorer 1991-2001
  • Ford Explorer Sport 2001-2003
  • Ford Explorer Sport Trac 2001-2005
  • Mazda Navajo 1991-1994
  • Mercury Mountaineer 1997-2001

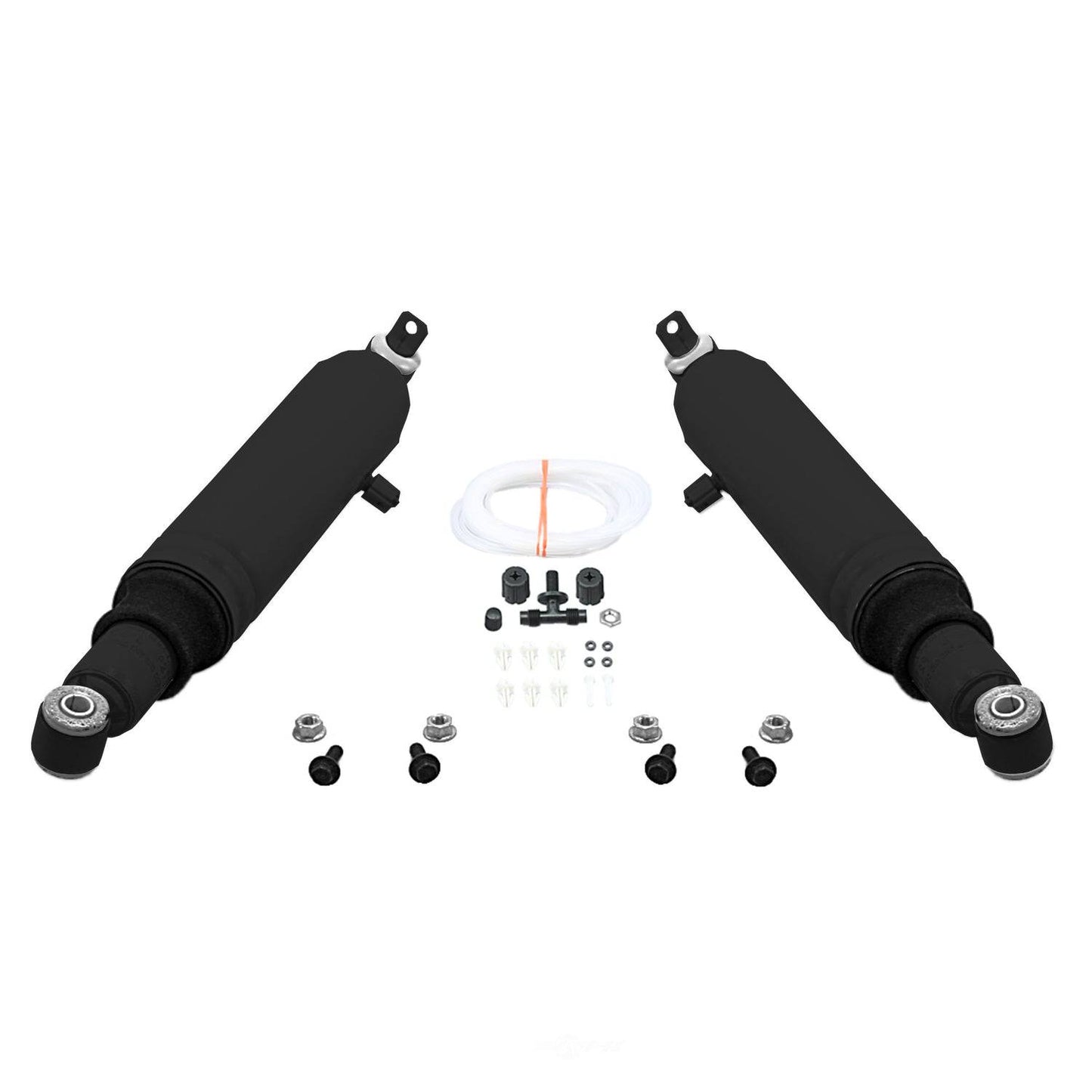

Monroe Max-Air MA776 Air Adjustable Air Shock Absorber Pack of 2

Ideal for hauling, Monroe Max-Air shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission).

For Towing & Hauling; Use AK18 Air Line Kit To Replace Single Air Shock Fill System If Necessary; Use AK64 Air Line Kit To Add Separate Left and Right Air Shock Fill System If Desired; To 11/94



Product specification:-

Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No
Boot Included Yes
Compressed Length 15 IN; 381 mm
Dust Shield Included Yes
Dust Shield Material Rubber
Extended Length 24.375 IN; 619.1 mm
Hydraulic Lockout No
Includes Bump Stop No
Internal Rebound Bumper Yes
Lower Mount Code LS26
Lower Mount Type Loop Bushing and Sleeve Mount - 12mm Sleeve ID X 1.1/2" Sleeve OAL
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Rod End Measuring Point Center of Cross Pin
Travel Length 238.1 mm; 9.375 IN
Upper Mount Code XP7
Upper Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
