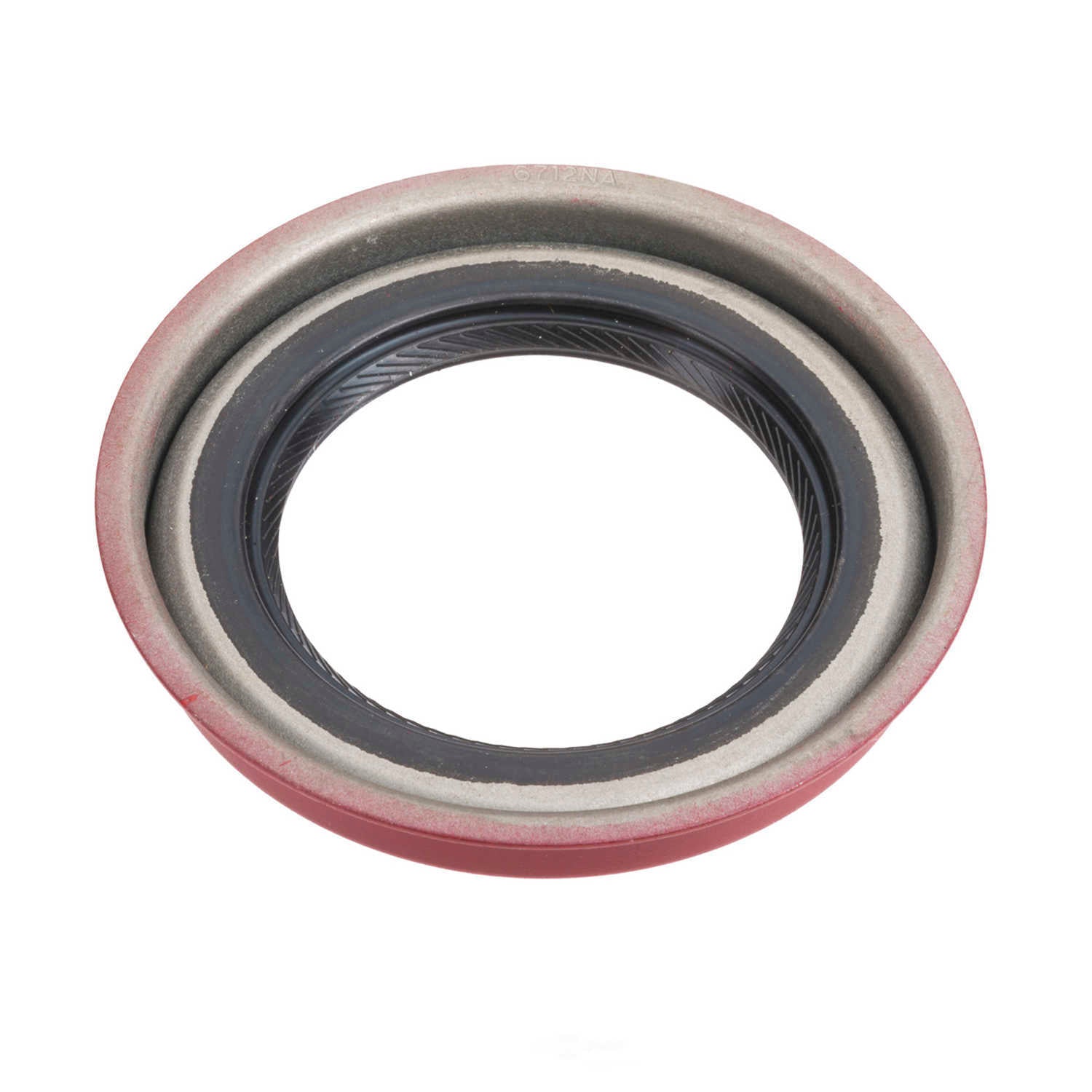

Automatic Transmission Oil Pump Seal - GMC C1500 1979-1990, K2500 1979-1990 6712NA
Automatic Transmission Oil Pump Seal - GMC C1500 1979-1990, K2500 1979-1990 6712NA
Couldn't load pickup availability
Part Number + Internal Code
Part Number + Internal Code
6712NA
078 05 000
Specification
Specification
Colour
Material
Fitment
Condition
Manufacturer Type
Manufacturers Site (links off site):
Automatic Transmission Oil Pump Seal - 6712NA
Common Applications Include:
Cadillac - DeVille 1964-1982, Eldorado 1964-1966, Fleetwood 1965-1984, Seville 1976-1979
Chevrolet - C10 1975-1986, C20 1975-1986, C1500 1988-1990, C2500 1988-1992, Camaro 1967-1981, Caprice 1966-1984, Chevelle 1964-1973, Corvette 1953-1981, El Camino 1959-1984, G10 1975-1990, G10 Van 1964-1974, G20 1975-1990, G20 Van 1967-1974, G30 1975-1990, G30 Van 1970-1974, K10 1975-1986, K10 Pickup 1960-1974, K10 Suburban 1967-1984, K1500 1988-1990, K20 1975-1986, K20 Panel 1967-1967, K20 Pickup 1960-1974, K20 Suburban 1967-1986, K2500 1988-1992, K30 1977-1986, K30 Pickup 1968-1974, K3500 1988-1990, K5 Blazer 1975-1986
GMC - C1500 1979-1990, C1500 Suburban 1979-1986, K2500 1979-1990, K2500 Suburban 1979-1986
Pontiac - Bonneville 1965-1984, Firebird 1967-1981
Product Specifications
| Flanged Outside Diameter (in) | 3.045 |
| Flanged Outside Diameter (MM) | 77.343 |
| Helix Type | Clockwise-Spiral Lip Design |
| Housing Bore (IN) | 2.758 |
| Housing Bore (MM) | 70.050 |
| Inside Diameter (IN) | 1.875 |
| Inside Diameter (MM) | 47.630 |
| Material | Polyacrylate |
| Outside Diameter (IN) | 2.762 |
| Outside Diameter (MM) | 70.150 |
| Redicoat | Yes |
| Sealing Material | Polyacrylate |
| Shaft Diameter (IN) | 1.875 |
| Shaft Diameter (MM) | 47.630 |
| Thickness (IN) | 0.425 |
| Thickness (MM) | 10.800 |
| Type | 75 |
| Width (IN) | 0.425 |
| Width (MM) | 10.800 |
