• Disc Brake Rotor Ford F150 1999-2004, Expedition Navigator 1999-2002
  • 1999-2002 Lincoln Navigator Disc Brake Rotor
1 2

Auto Extra

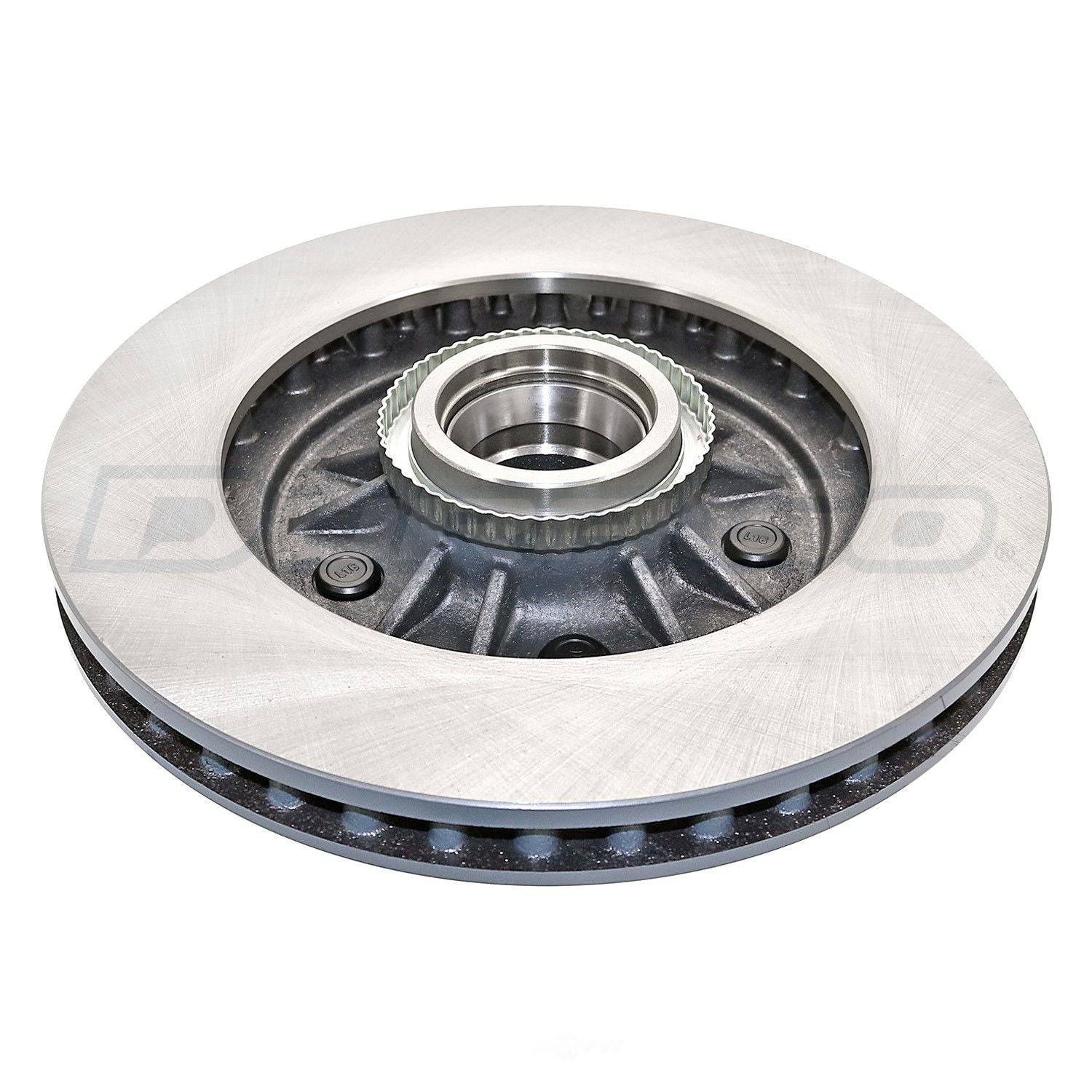

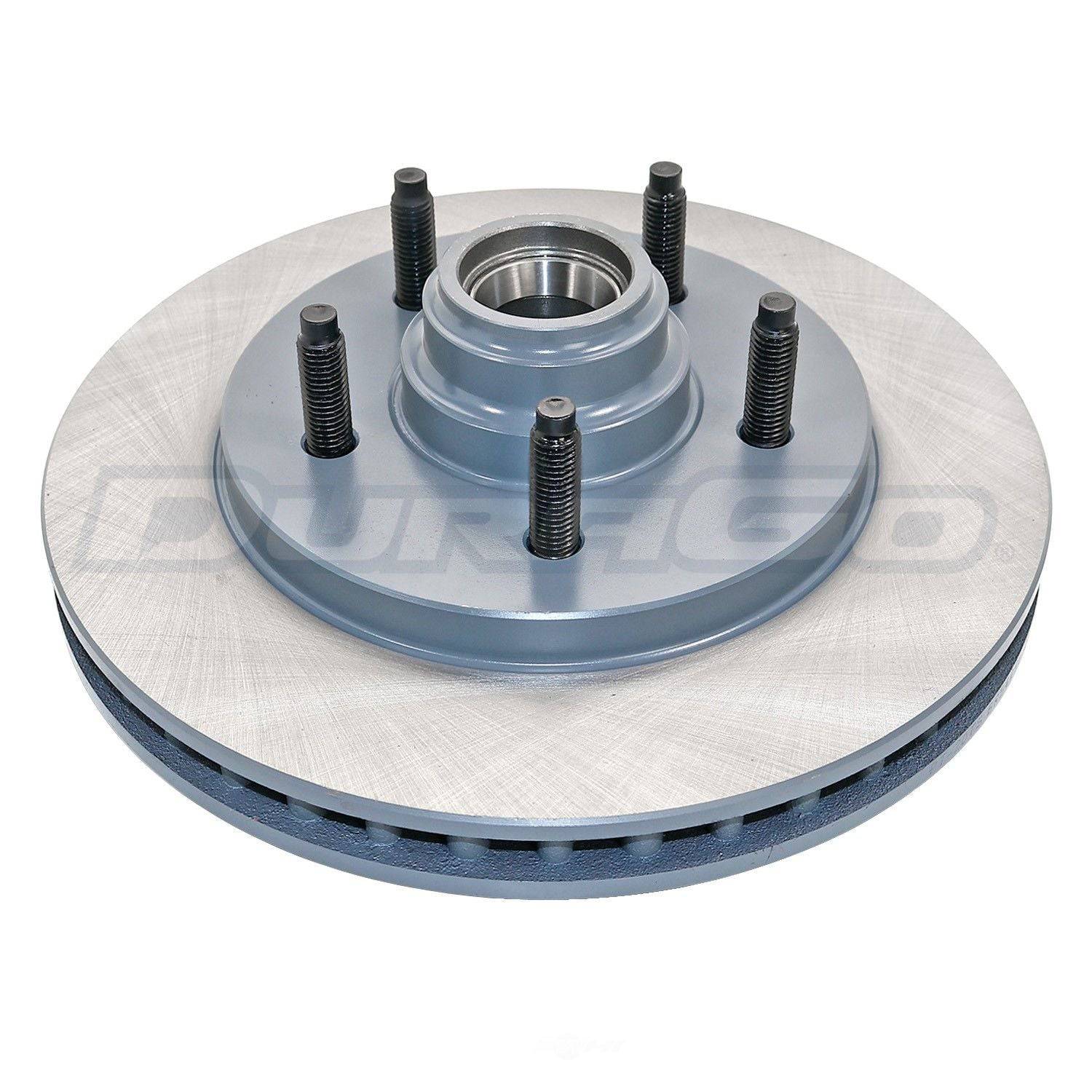

Disc Brake Rotor & Hub Assembly - Ford F150 99-04, Lincoln Navigator 99-02 AX54091

Disc Brake Rotor & Hub Assembly - Ford F150 99-04, Lincoln Navigator 99-02 AX54091

£77.00 GBP
£77.00 GBP
Sale Sold out
Tax included.
We have 4 in stock

Part Number + Internal Code

AX54091

079 05 000

Specification

Colour

Material

Fitment

Condition

Manufacturer Type

Manufacturers Site (links off site):

Disc Brake Roto & Hub Assembly - AX54091 Ford F150 99-04, Lincoln Navigator 99-02 (Front)

5 Lug Wheel, 4 Wheel Disc

  • Painted on hat and edge for improved corrosion protection. Provides lasting protection to the hat and edge of the rotor and as an added benefit, the grey finish complements vehicles with open wheel designs.
  • Engineered to high metallurgical standards for consistent quality, strength and performance.
  • Precision balanced and a non-directional swirl finish eliminates the need for machining prior to installation.
  • This Brake Drum and Rotor Program is the professional's choice for quality, attention to detail, cataloguing and first to market applications.
  • Manufactured by ISO certified factories to meet requirements of fit, form and function.
  • Deliver a winning combination of quality, performance, styling and defence against corrosion.
  • 4WD

Common Applications Include:

FORD EXPEDITION 1999-2002
FORD F-150 1999-2004
FORD F-150 HERITAGE 2004
LINCOLN NAVIGATOR 1999-2002



Product Specifications:

Abs Tone Ring Included Yes
Cross Drilled No
Directional or Non-Directional Brake Surface Non-Directional
Discard Thickness (IN) 1.09
Discard Thickness (MM) 27.7
Inner Bearing Cup Included Yes
Mounting Bolt Hole Circle Diameter (IN) 5.31
Mounting Bolt Hole Circle Diameter (MM) 135
Nominal Thickness (IN) 1.18
Nominal Thickness (MM) 30
Outer Bearing Cup Included Yes
Overall Height (IN) 4.05
Overall Height (MM) 102.8
Rotor Outside Diameter (IN) 12.13
Rotor Outside Diameter (MM) 308
Rust Resistant Coating No
Slotted No
Solid Or Vented Type Rotor Vented
Stud Quantity 5
Stud Thread Size (MM) M14 x 2
Wheel Studs Included Yes
