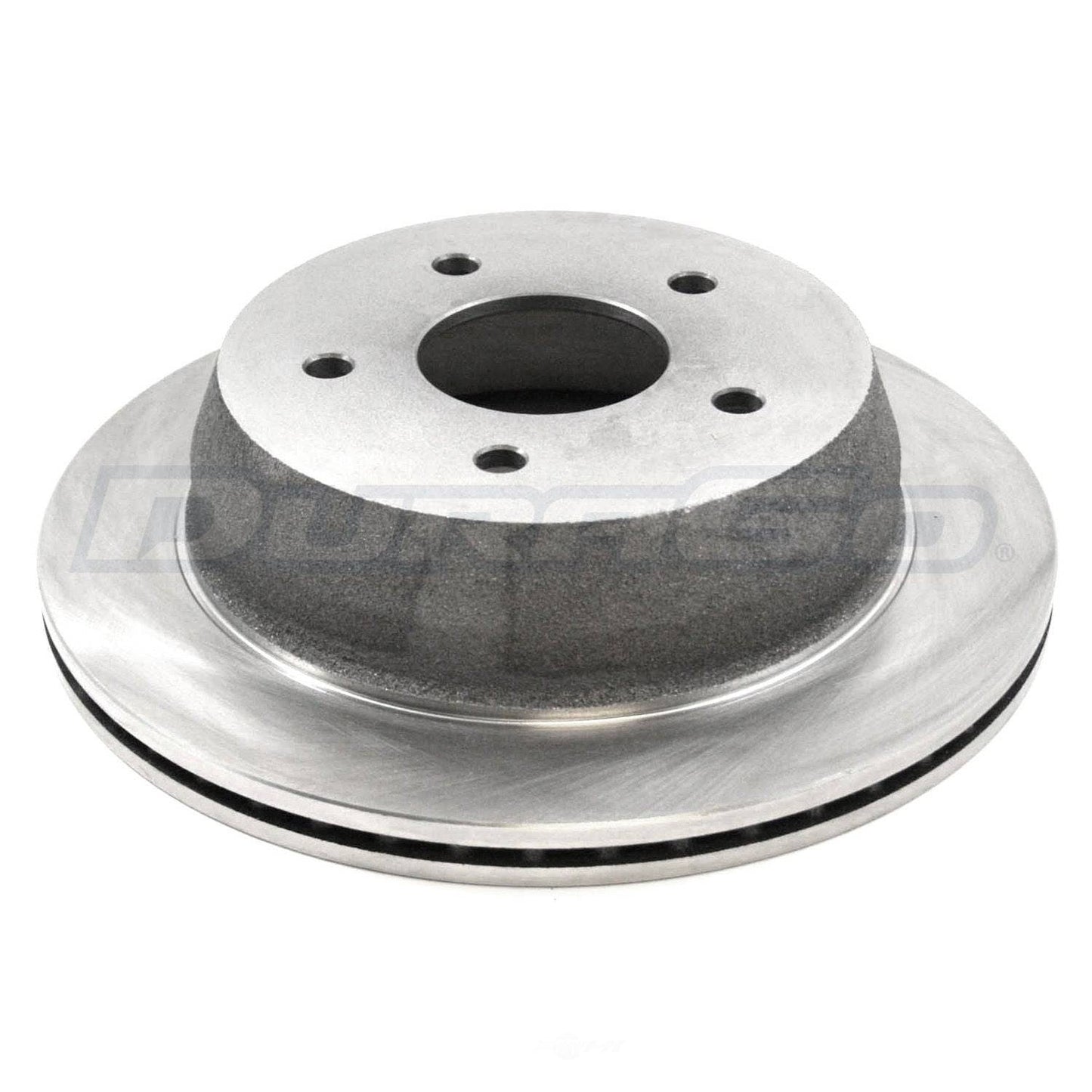

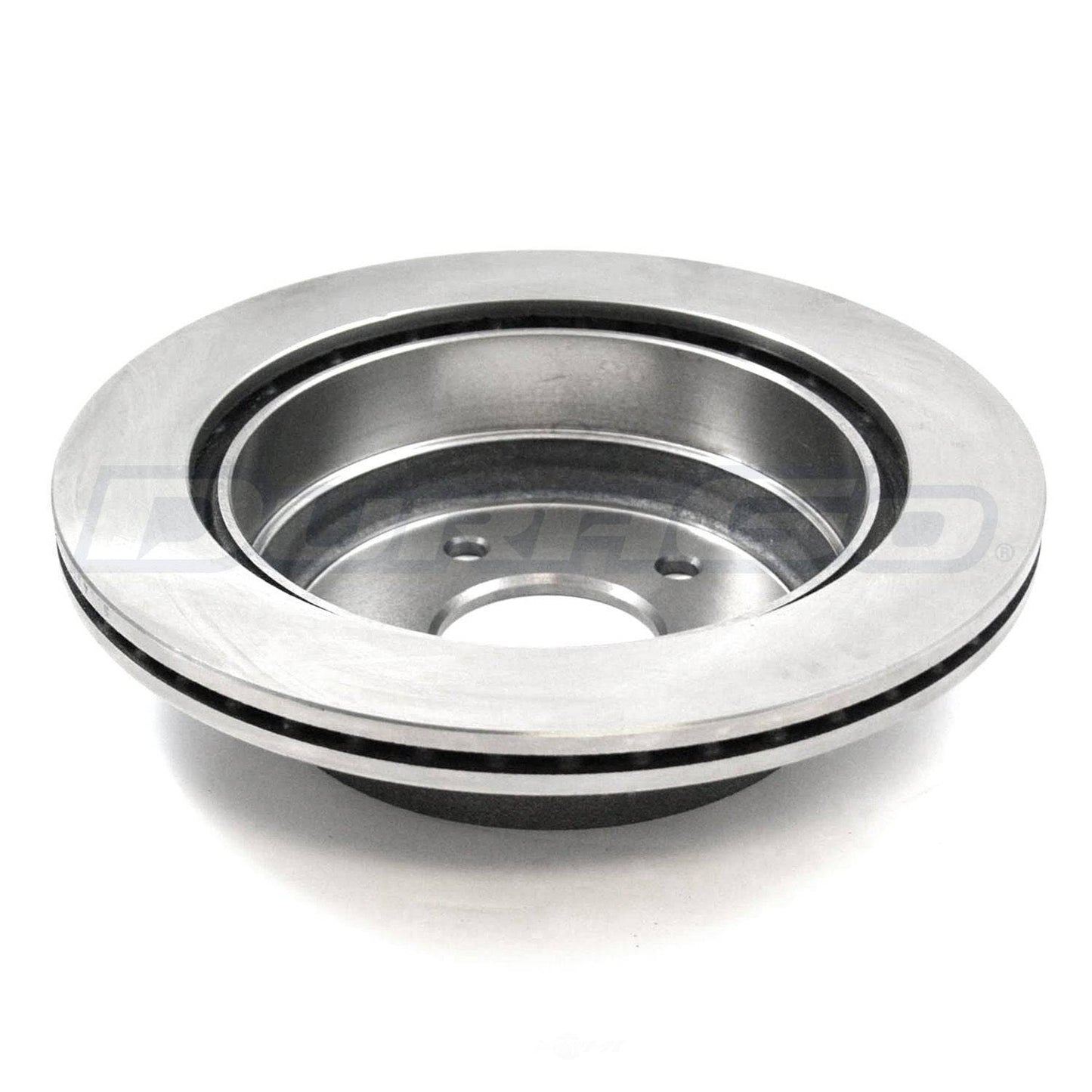

Disc Brake Rotor - Chevrolet Blazer 98-05, GMC Jimmy 98-02 AX55049
Disc Brake Rotor - Chevrolet Blazer 98-05, GMC Jimmy 98-02 AX55049
Regular price
£31.25 GBP
Regular price
Sale price
£31.25 GBP
Unit price
/
per
Tax included.
We have 2 in stock
Couldn't load pickup availability
Part Number + Internal Code
Part Number + Internal Code
56725 (Raybestos), 145181 (Bendix)
061 07 000
Specification
Specification
Colour
Material
Fitment
Condition
Manufacturer Type
Manufacturers Site (links off site):
Disc Brake Rotor - AX55049 Chevrolet Blazer 98-05, GMC Jimmy 98-02 (Rear)
- Engineered to high metallurgical standards for consistent quality, strength and performance. Precision balanced and a non-directional swirl finish eliminates the need for machining prior to installation.
- This Brake Drum and Rotor Program is the professional's choice for quality, attention to detail, cataloguing and first to market applications.
- Manufactured by ISO certified factories to meet requirements of fit, form and function.
Common Applications Include:
| CHEVROLET | BLAZER | 1998-2005 |
| GMC | JIMMY | 1998-2001 |
Product Specifications:
| Abs Tone Ring Included | No |
| Center Hole Diameter (IN) | 2.79 |
| Center Hole Diameter (MM) | 70.8 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Drum-in-Hat |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness (IN) | 0.73 |
| Discard Thickness (MM) | 18.5 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter (IN) | 4.75 |
| Mounting Bolt Hole Circle Diameter (MM) | 120.65 |
| Mounting Bolt Hole Diameter (IN) | 0.52 |
| Mounting Bolt Hole Diameter (MM) | 13.1 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness (IN) | 0.79 |
| Nominal Thickness (MM) | 20 |
| Outside Diameter (IN) | 11.61 |
| Outside Diameter (MM) | 295 |
| Overall Height (IN) | 2.86 |
| Overall Height (MM) | 72.7 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
