Raybestos

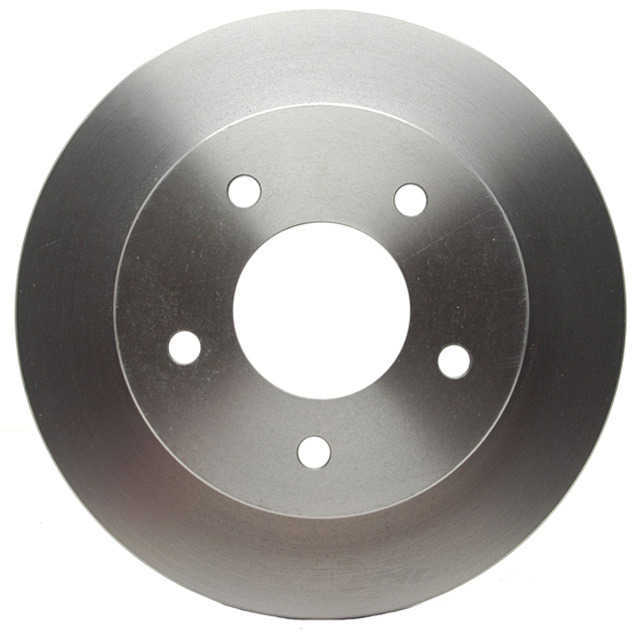

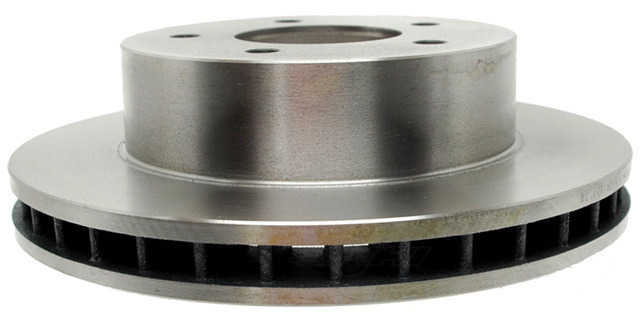

Disc Brake Rotor - Chevrolet Astro 90-02 580442R

Disc Brake Rotor - Chevrolet Astro 90-02 580442R

Regular price £42.20 GBP
Regular price £42.00 GBP Sale price £42.20 GBP
Sale Sold out
Tax included.
We have 1 in stock

Part Number + Internal Code

580442R

061 05 001

Specification

Colour

Material

Fitment

Condition

Manufacturer Type

Manufacturers Site (links off site):

Disc Brake Rotor - 580442R Chevrolet Astro 90-02

Features & Benefits:

Raybestos R-Line Rotors & Drums are engineered for everyday driving conditions. Offering industry-leading coverage, our R-Line rotors & drums provide the highest level of dependability, safety, and performance.

  • Developed from OE samples and made with G3000-qualified material to ensure proper form, fit and function for dependable performance
  • Meet the SAE standard for tensile strength, providing structural integrity and a maximum service life
  • Non-directional ground finish gives you a product that is ready to install right out of the box
  • Lateral runout of 0.004” or less and a thickness variation of less than 0.0005” ensures less pedal pulsation, less brake noise, and extended pad life
  • Mill balanced and 100% validated, leading to proper balance, minimised vibration, and quieter and smoother stopping

Common Applications Include:

Make Model Year Range
Chevrolet Astro 1990-2002
GMC Safari 1990-2002



Product Specifications:

Abs Tone Ring Included No
Center Hole Diameter (IN) 3.102
Center Hole Diameter (MM) 78.8
Conventional Or Drum-In-Hat Type Rotor Conventional
Directional or Non-Directional Brake Surface Non-Directional
Discard Thickness (IN) 1.215
Discard Thickness (MM) 30.85
Material Cast Iron
Mounting Bolt Hole Circle Diameter (IN) 5
Mounting Bolt Hole Circle Diameter (MM) 127
Mounting Bolt Hole Diameter (IN) 0.546
Mounting Bolt Hole Diameter (MM) 13.85
Mounting Bolt Hole Quantity 5
Nominal Thickness (IN) 1.285
Nominal Thickness (MM) 32.65
Outside Diameter (IN) 11.61
Outside Diameter (MM) 294.9
Overall Height (IN) 3.273
Overall Height (MM) 83.15
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
