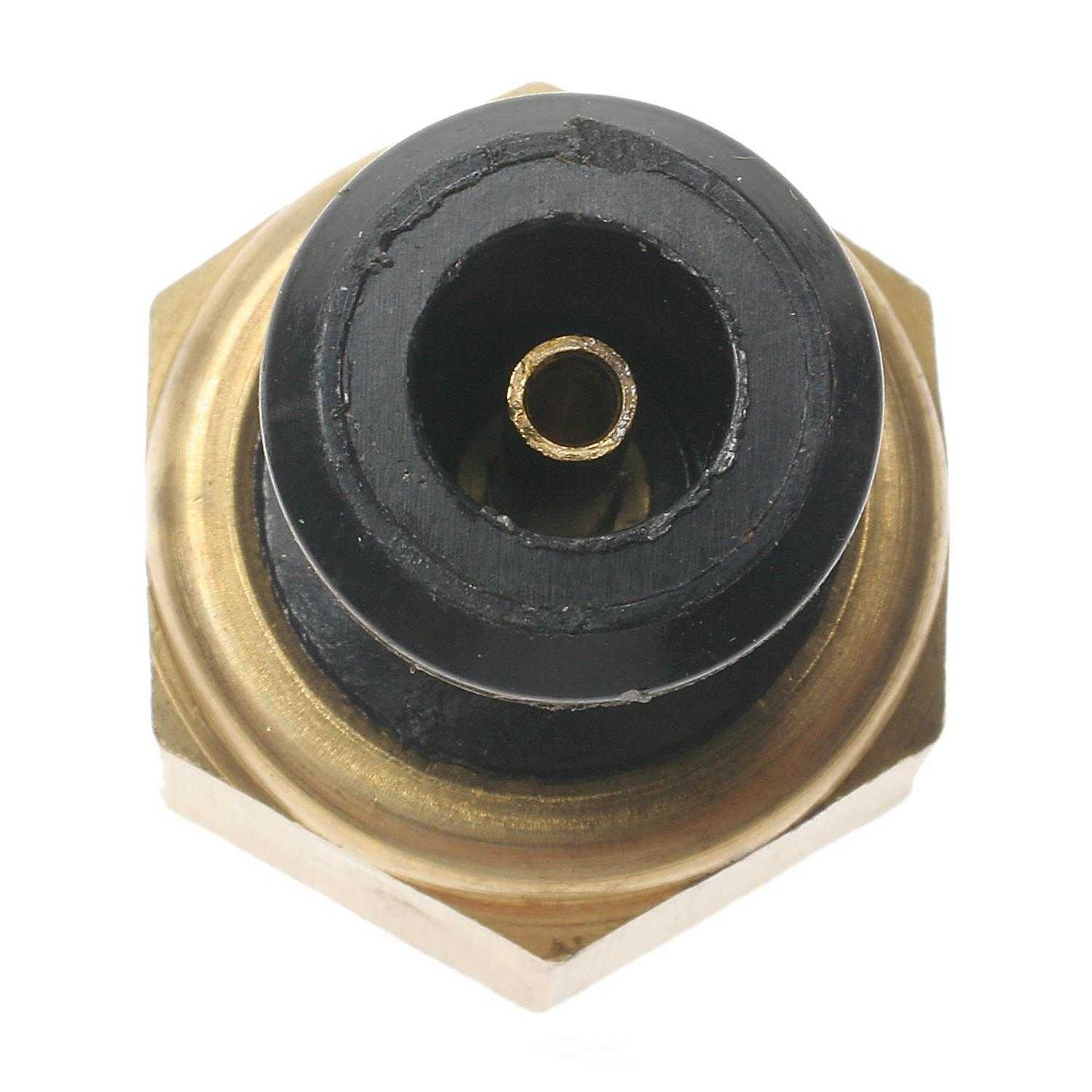

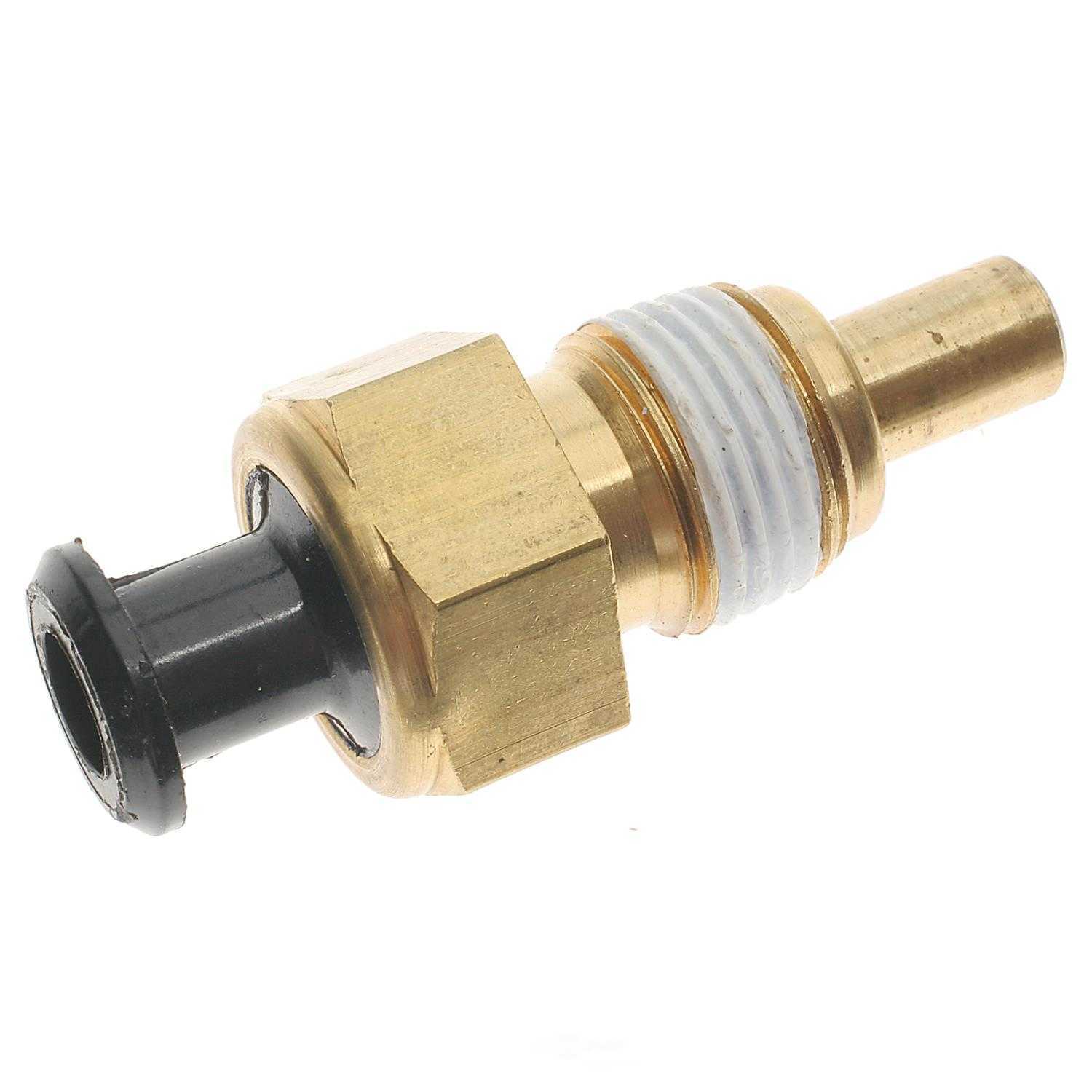

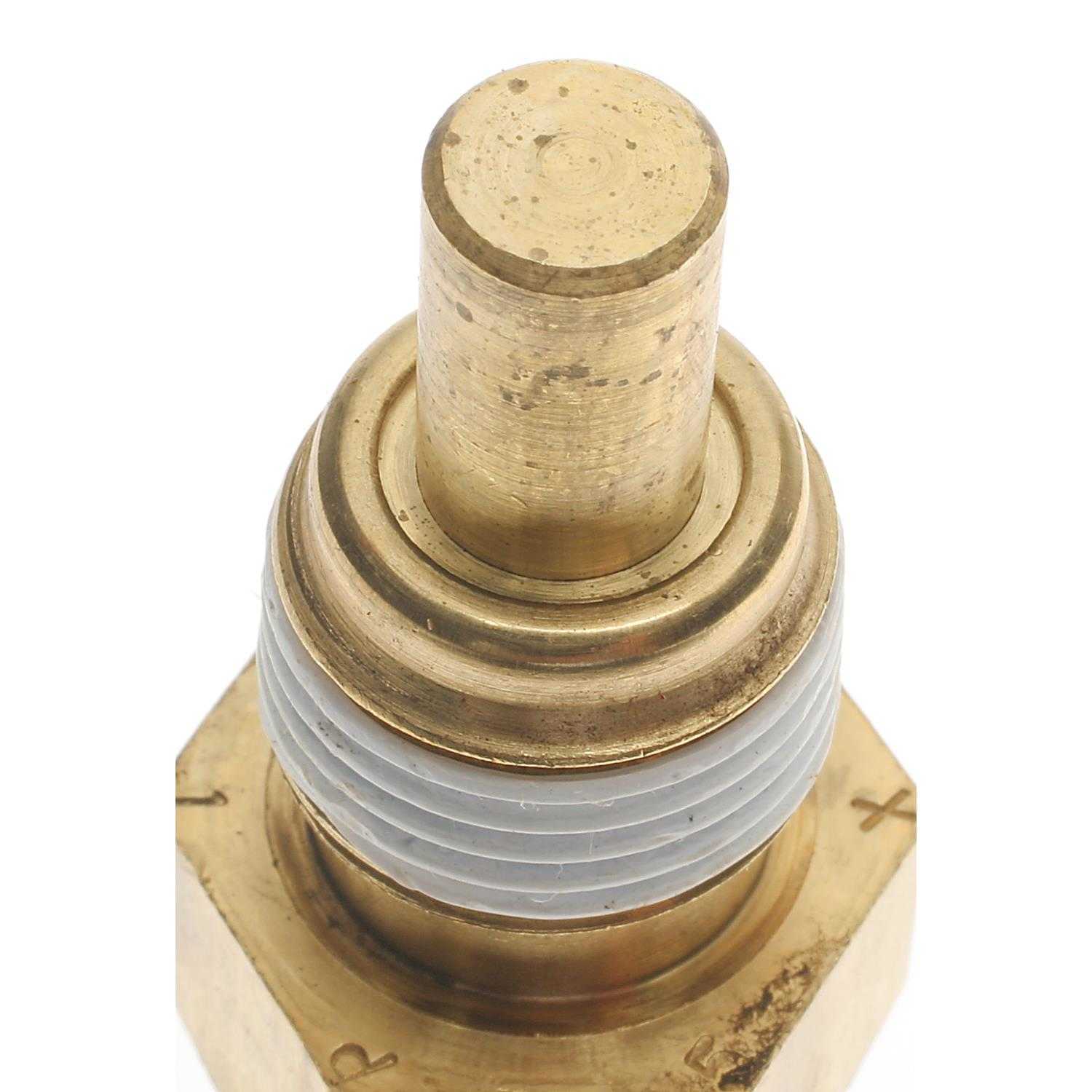

Cooling Fan Switch - Cadillac DeVille 85-92, Chevrolet Camaro 82-91, Oldsmobile Toronado 86-88, Pontiac Bonneville 87-88 TS147

Engine Cooling Fan Switch - TS147 Cadillac DeVille 85-92, Chevrolet Camaro 82-91, Oldsmobile Toronado 86-88, Pontiac Bonneville 87-88

Features & Benefits:

Standard manufacturers the highest-quality, best-performing parts for all import and domestic vehicles; gas, diesel, electric and hybrid. Precision manufacturing, multiple layers of testing, and a detailed validation process ensures Standard parts don’t just fit, they perform and they last.

• In manufacturing, Standard custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
• The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
• As a global manufacturer of original equipment ignition products, Standard maintain complete quality control throughout the manufacturing process to finished product

Common Applications Include:

• Cadillac Brougham 1987-1992
• Cadillac DeVille 1985-1992
• Cadillac Fleetwood 1985-1992
• Chevrolet Camaro 1982-1991
• Chevrolet Corvette 1980-1984
• Oldsmobile Toronado 1986-1988
• Pontiac Bonneville 1987-1988
• Pontiac Firebird 1982-1992
• Pontiac Grand Am 1985-1987

Product Specifications:

• Voltage: 12
• Connector Type: Plug In
• Switch Actuation Style: Toggle
• Connector Quantity: 1
• Connector Shape: Round
• Connector Gender: Female (1)
• Terminal Quantity: 1
• Terminal Gender: Male
• Terminal Type: Bullet
• Attachment Method: Screw-on
• Thread Size: 16mm x 1.50
• Width: 0.58in
