USA Sourced

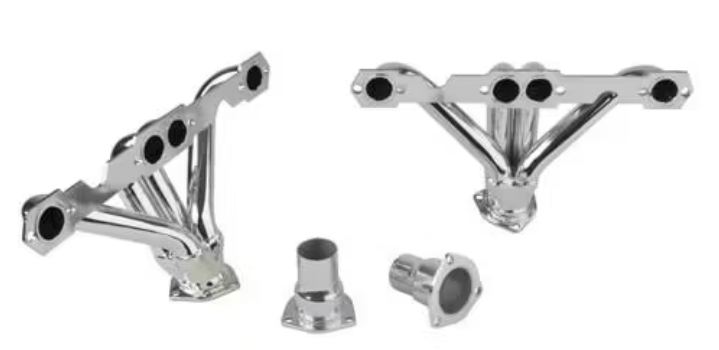

Exhaust Headers (SBC, Ceramic Coating)
Exhaust Headers (SBC, Ceramic Coating)
Regular price
£324.40 GBP
Regular price
£324.20 GBP
Sale price
£324.40 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Part Number + Internal Code
Part Number + Internal Code
SH
Specification
Specification
Colour
Material
Fitment
Condition
Manufacturer Type
Manufacturers Site (links off site):
- These small block Chevy tight fit headers work well on early hot rods with narrow frame widths due to the slim 4" distance from the flange to outermost point
- 1-1/2" primary tubes and 2-1/2" collectors aid in fitting tight clearance applications
- Ceramic coating ensures long lasting good looks while also reducing under hood temperatures
- Will NOT fit angled plug heads. This header will NOT clear the 'clam shell' style engine mount commonly used as the stock type engine mounts on 1973-up Chevy applications.
| Header Tube Type | Block Hugger |
| Exhaust Port Shape | Round |
| Flange Style | Standard |
| Primary Tube Diameter | 1-1/2" |
| Material Type | Steel |
| Color | Silver |
| Weld-Up | No |
| Collector Diameter | 2-1/2 Inch |
| Finish | Ceramic Coated |
| Collector Attachment Type | 3-bolt flange |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| Collector Reducers Included | Yes |
| Collector Reducer Exit Diameter | 2" |
|
|
|
| GENERAL | |
|---|---|
| Flange Thickness | .21" |
| Port Height | 1.38" |
| Port Width | 1.38" |
| Header Dimension A | 4.00" |
| Header Dimension B | 10.13" |
| Header Dimension C | 18.38" |
| Sold in Quantity | Pair |
