Spectra

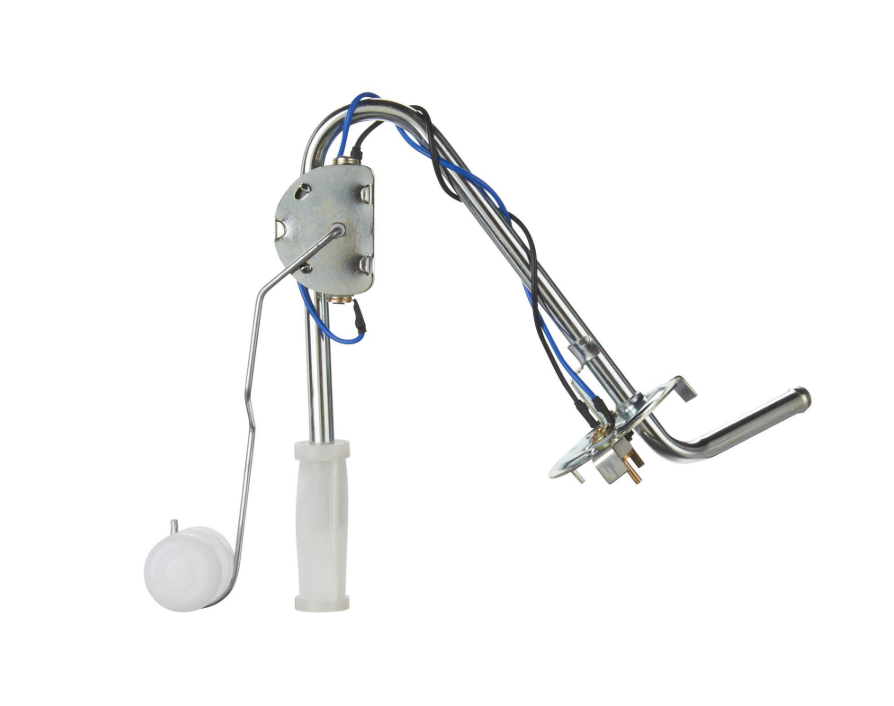

Fuel Sending Unit Chevrolet Corvette 63-67 FG101A**
Fuel Sending Unit Chevrolet Corvette 63-67 FG101A**
Regular price
£105.25 GBP
Regular price
Sale price
£105.25 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Part Number + Internal Code
Part Number + Internal Code
FG101A
Specification
Specification
Colour
- Silver
Material
Fitment
Condition
Manufacturer Type
Manufacturers Site (links off site):
Fuel Sending Unit Chevrolet Corvette 63-67 FG101A**
** Please note this item is shipped from our USA supplier on order. Typically it arrives at your door within 7-10 days.
Vehicle Fitment Details:-
| Years | Make / Model | Engine Type | Engine Family | Size (L / CID / CC) | Notes |
|---|---|---|---|---|---|
| 1963–1965 | Chevrolet Corvette (Base) | V8 | Chevy small block Gen I | 5.3L / 327 / 5358 | 0.375in Outlet. Replacing lock ring & seal required for warranty. |
| 1966 | Chevrolet Corvette (Base) | V8 | Chevy big block Mark IV | 7.0L / 427 / 6998 | 0.375in Outlet. Replacing lock ring & seal required for warranty. |
| 1966–1967 | Chevrolet Corvette (Base) | V8 | Chevy small block Gen I | 5.3L / 327 / 5358 | 0.375in Outlet. Replacing lock ring & seal required for warranty. |
| 1967 | Chevrolet Corvette (Base) | V8 | Chevy big block Mark IV | 7.0L / 427 / 6998 | 0.375in Outlet. Replacing lock ring & seal required for warranty. |
Spectra Premium Fuel Tank Sending Units
With a direct fit and OE-matched electrical connections, Spectra Premium fuel tank sending units are invaluable when replacing a faulty gas tank in your pickup. These instruments feature a new strainer, lock ring, O-ring, and all terminals and connectors. They also include a float when the OE model had one.
| Specification | Value |
|---|---|
| Adjustable Float Level | No |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Pin |
| Fuel Pump Included | No |
| Gasket or Seal Included | Yes |
| Inlet Quantity | 0 |
| Lock Ring Included | Yes |
| Outlet Attachment Type | Butt Flare |
| Outlet Diameter | 10.0000 mm |
| Outlet Quantity | 1 |
| Resistance Ohms Empty | 0.0 Ohm |
| Resistance Ohms Full | 115.0 Ohm |
| Strainer Included | Yes |
| Terminal Quantity | 1 |
| Terminal Type | Pin |
| Vent Quantity | 0 |
| Wire Quantity | 2 |
| Wiring Harness Included | No |
