Standard Motor Products

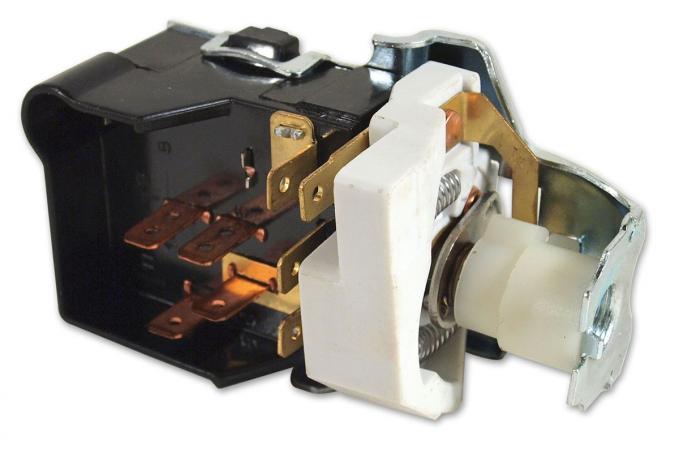

Headlight Switch Cadillac 64-88 Corvette 64-71 C10 C20 64-73 Camaro 67-73 Chevrolet 60-96 DS155T
Headlight Switch Cadillac 64-88 Corvette 64-71 C10 C20 64-73 Camaro 67-73 Chevrolet 60-96 DS155T
Regular price
£20.20 GBP
Regular price
£20.00 GBP
Sale price
£20.20 GBP
Unit price
/
per
Tax included.
We have 2 in stock
Couldn't load pickup availability
Part Number + Internal Code
Part Number + Internal Code
DS155T
080 03 003
Specification
Specification
Colour
Material
Fitment
Condition
Manufacturer Type
Manufacturers Site (links off site):
Headlight Switch Chevrolet 60-96 Corvette 64-71 C10 C20 64-73 Camaro 67-73 DS155T
Features & Benefits:
Over the years, switches deteriorate leading to bad rheostats or simply out right failure. Symptoms may include a burning electrical smell from your dash when your headlights are on, inability to dim or adjust your instrument panel lights, poor or faulty movement of the mechanical parts or flickering of the lights.
Even though your headlight switch is fairly simple to replace, we always recommend consulting your Corvettes service shop manual. First, you will need to access the back of the switch where you will find a small 1/4 inch button. Pull the knob while simultaneously pressing the little button. Your headlight knob should then come out. Next, unscrew the round nut that holds the switch to the dash. Pull the switch out from behind the dash and unplug it from the harness. Then, just reverse the actions to re-install. It’s that easy.
Fitment Information:
| Buick Electra (1964-1967) |
| Buick Gran Sport (1965-1967) |
| Buick LeSabre (1964-1967) |
| Buick Opel (1978-1979) |
| Buick Riviera (1964-1967) |
| Buick Skylark (1964-1967) |
| Buick Special (1964-1967) |
| Buick Sportwagon (1964-1966) |
| Buick Wildcat (1964-1967) |
| Cadillac Calais (1965-1967) |
| Cadillac Cimarron (1985-1988) |
| Cadillac Commercial Chassis (1964-1967) |
| Cadillac DeVille (1964-1967) |
| Cadillac Eldorado (1964-1967) |
| Cadillac Fleetwood (1965-1967) |
| Cadillac Series 60 Fleetwood (1964) |
| Cadillac Series 62 (1964) |
| Cadillac Series 75 Fleetwood (1964) |
| Chevrolet B60 (1983-1991) |
| Chevrolet Bel Air (1964-1968, 1971) |
| Chevrolet Biscayne (1964-1968, 1970-1972) |
| Chevrolet Blazer (1969-1973) |
| Chevrolet Brookwood (1970-1972) |
| Chevrolet C10 Panel (1964-1967) |
| Chevrolet C10 Pickup (1964-1973) |
| Chevrolet C10 Suburban (1967-1973) |
| Chevrolet C20 Pickup (1965-1973) |
| Chevrolet C20 Suburban (1967-1973) |
| Chevrolet C30 Panel (1965-1966) |
| Chevrolet C30 Pickup (1965-1973) |
| Chevrolet C70 (1983-1989) |
| Chevrolet Camaro (1967-1973) |
| Chevrolet Caprice (1966-1973) |
| Chevrolet Chevelle (1964-1973) |
| Chevrolet Chevy II (1964-1968) |
| Chevrolet Corvair (1964-1969) |
| Chevrolet Corvair Truck (1964) |
| Chevrolet Corvette (1964-1971) |
| Chevrolet El Camino (1964-1973) |
| Chevrolet G10 Van (1964-1973) |
| Chevrolet G20 Van (1967-1973) |
| Chevrolet G30 Van (1970-1973) |
| Chevrolet Impala (1964-1971, 1973) |
| Chevrolet K10 Pickup (1965-1973) |
| Chevrolet K10 Suburban (1967-1973) |
| Chevrolet K20 Panel (1967) |
| Chevrolet K20 Pickup (1965-1973) |
| Chevrolet K20 Suburban (1967-1973) |
| Chevrolet K30 Pickup (1968-1973) |
| Chevrolet Kingswood (1970-1972) |
| Chevrolet Luv Pickup (1972) |
| Chevrolet Malibu (1964-1967, 1973) |
| Chevrolet Monte Carlo (1970-1973, 1988) |
| Chevrolet Nova (1969-1975) |
| Chevrolet P10 Series (1964-1967) |
| Chevrolet P10 Van (1967-1973) |
| Chevrolet P20 Series (1964-1967) |
| Chevrolet P20 Van (1968-1973) |
| Chevrolet P30 (1994-1996) |
| Chevrolet P30 Series (1964-1967) |
| Chevrolet P30 Van (1968-1973) |
| Chevrolet Suburban (1960-1966) |
| Chevrolet Townsman (1970-1972) |
| Chevrolet Vega (1971-1975) |
| GMC 1000 Series (1964-1965) |
| GMC 1500 Series (1964-1965) |
| GMC 2500 Series (1964-1965) |
| GMC 3000 (1964-1965) |
| GMC 3500 (1964-1965) |
| GMC B3500 (1964-1965) |
| GMC B6000 (1983-1991) |
| GMC C15/C1500 Pickup (1967-1972) |
| GMC C15/C1500 Suburban (1967-1972) |
| GMC C25/C2500 Pickup (1967-1972) |
| GMC C25/C2500 Suburban (1967-1972) |
| GMC C35/C3500 Pickup (1967-1972) |
| GMC C7000 (1983-1989) |
| GMC G1000 Series (1964-1966) |
| GMC G15/G1500 Van (1967-1973) |
| GMC G25/G2500 Van (1967-1973) |
| GMC G35/G3500 Van (1970-1973) |
| GMC I1000 (1964-1966) |
| GMC I1500 (1965-1966) |
| GMC I2500 (1965-1966) |
| GMC Jimmy (1970-1972) |
| GMC K1000 Pickup (1966) |
| GMC K15/K1500 Pickup (1966-1972) |
| GMC K15/K1500 Suburban (1967-1972) |
| GMC K25/K2500 Pickup (1967-1972) |
| GMC K25/K2500 Suburban (1967-1972) |
| GMC K35/K3500 Pickup (1968-1972) |
| GMC L3500 (1965, 1967) |
| GMC LI3500 (1967) |
| GMC P15/P1500 Van (1967-1972) |
| GMC P25/P2500 Van (1967-1972) |
| GMC P2500 (1989) |
| GMC P35/P3500 Van (1967-1972) |
| GMC P3500 (1989, 1994-1996) |
| GMC PB1000 Series (1964-1966) |
| GMC PB15 Series (1966) |
| GMC PB1500 Series (1964-1965) |
| GMC PB25 Series (1966) |
| GMC PB2500 Series (1964-1965) |
| GMC PB3500 Van (1966) |
| GMC Sprint (1971-1973) |
| GMC Suburban (1964-1965) |
| Oldsmobile 442 (1965-1966) |
| Oldsmobile 98 (1964-1966) |
| Oldsmobile Custom Cruiser (1973, 1983) |
| Oldsmobile Cutlass (1961-1966) |
| Oldsmobile Delta 88 (1965-1966, 1983-1985) |
| Oldsmobile F85 (1964-1966) |
| Oldsmobile Jetstar 88 (1964) |
| Oldsmobile Super 88 (1964) |
| Oldsmobile Toronado (1967) |
| Oldsmobile Vista Cruiser (1964-1966) |
| Pontiac Acadian (1968-1969) |
| Pontiac Beaumont (1968-1969) |
| Pontiac Bonneville (1968-1974) |
| Pontiac Catalina (1968-1974) |
| Pontiac Executive (1968-1970) |
| Pontiac Firebird (1967-1972) |
| Pontiac Grand Am (1973-1974) |
| Pontiac Grand Prix (1968-1969, 1973-1974) |
| Pontiac Grand Safari (1971-1973) |
| Pontiac Grandville (1971-1974) |
| Pontiac GTO (1968-1973) |
| Pontiac Laurentian (1968-1969, 1973) |
| Pontiac LeMans (1968-1974) |
| Pontiac Parisienne (1968-1969, 1973) |
| Pontiac Safari (1987) |
| Pontiac Strato-Chief (1968-1969) |
| Pontiac Tempest (1964-1969) |
| Pontiac Ventura (1971-1974) |
Product Specificaiton
| Color/Finish | Black, Silver,White |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Finish | Aluminum, Plastic |
| Functions | Headlight |
| Knob Color | Black |
| Terminal Gender | Male |
| Terminal Quantity | 8 |
| Terminal Type | Blade |
