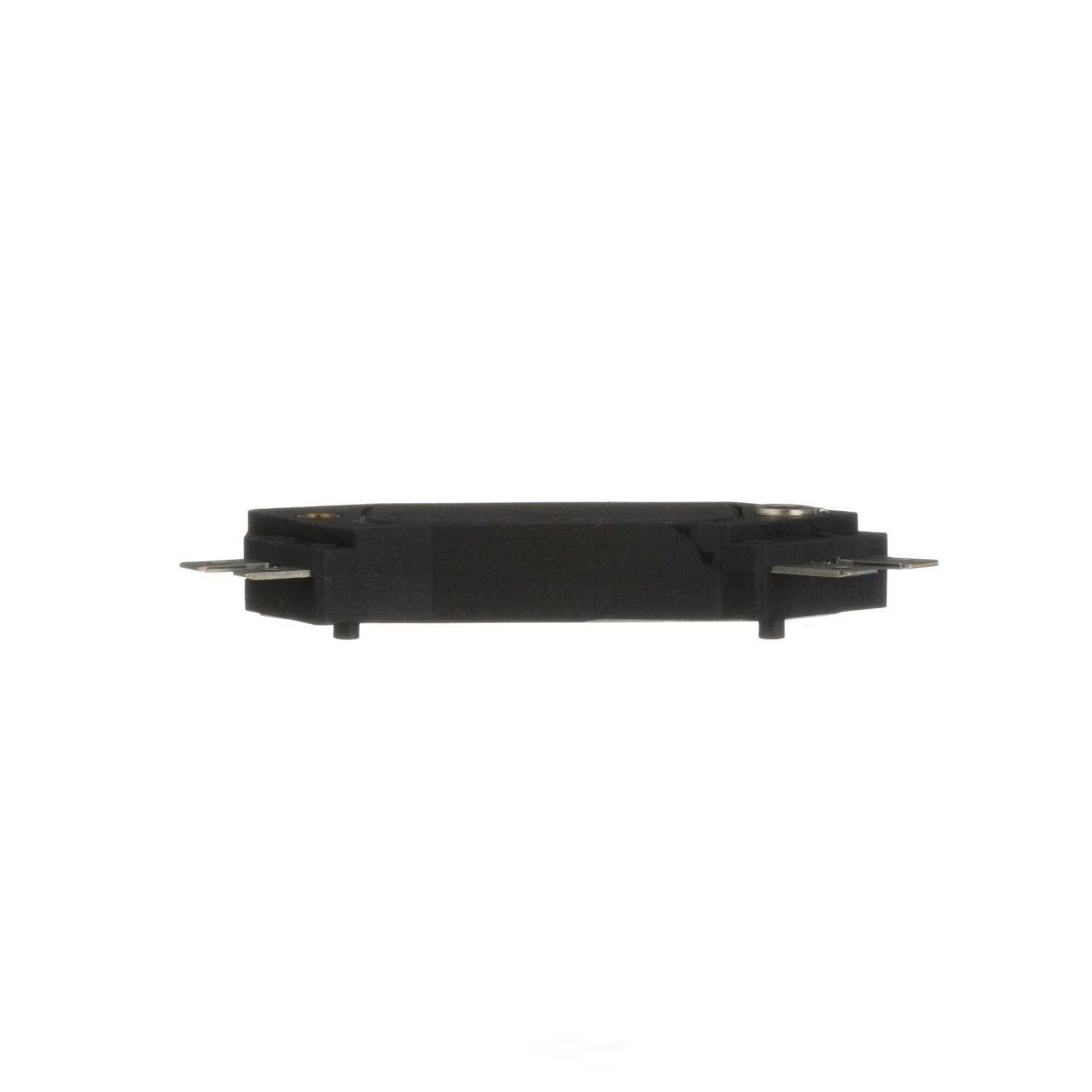

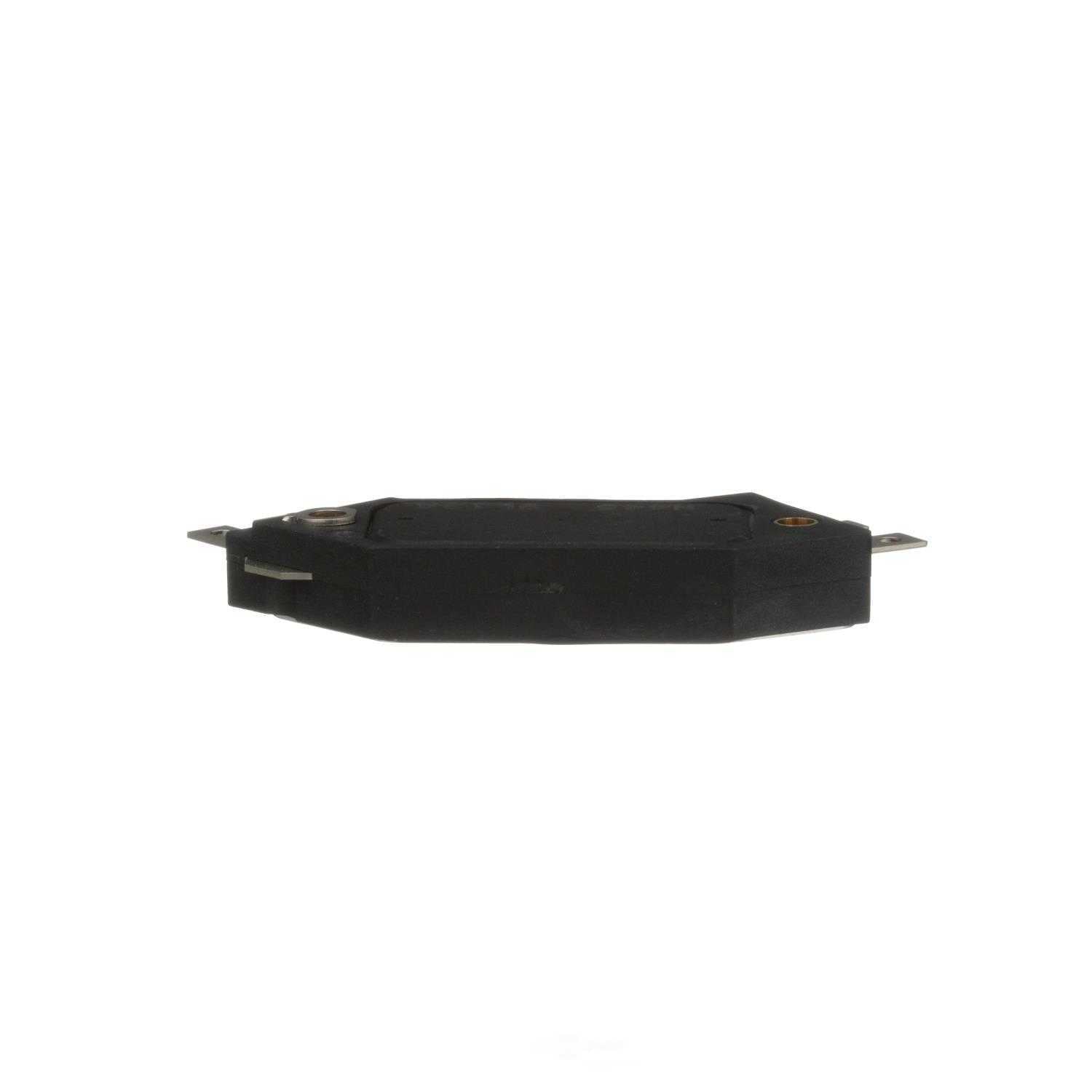

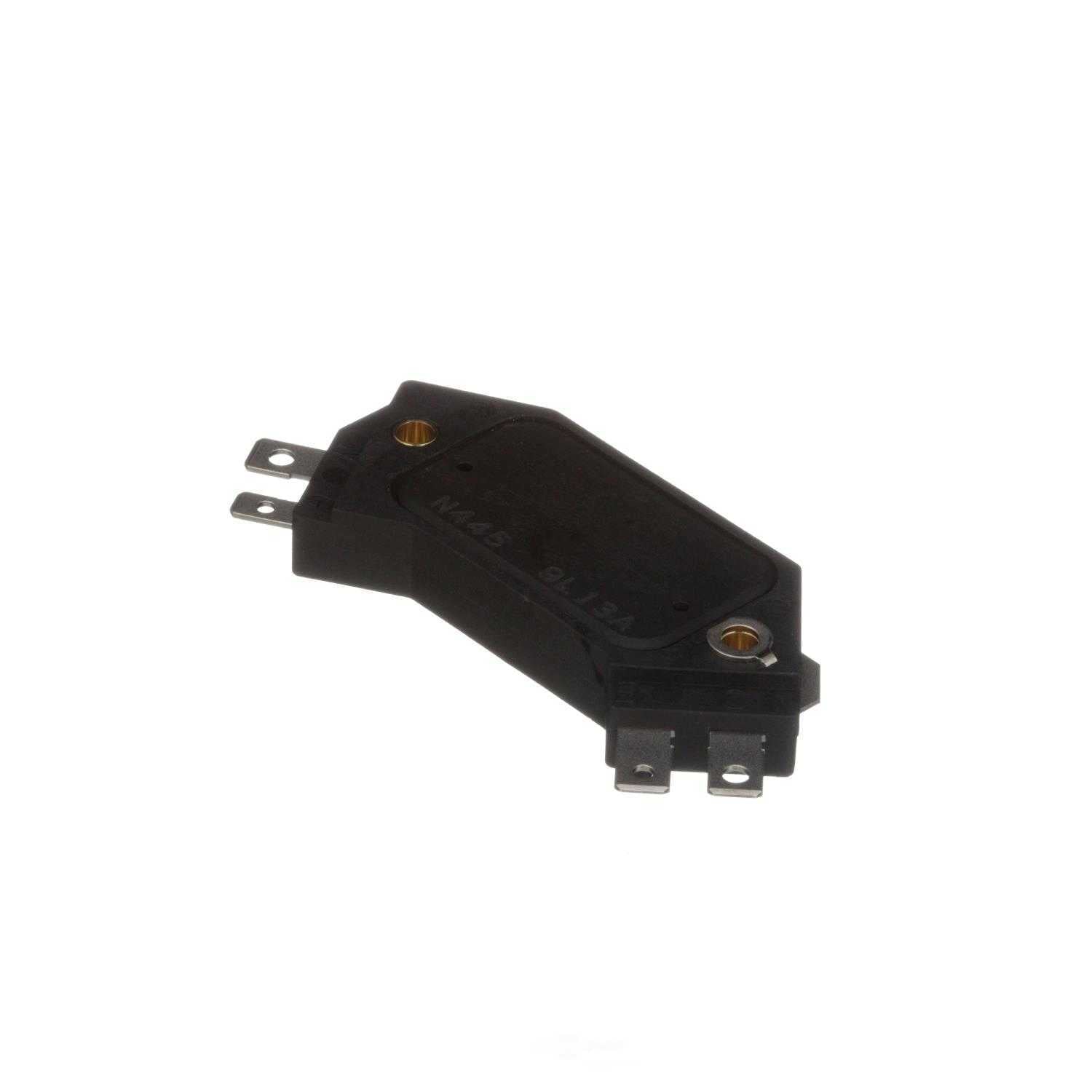

Ignition Control Module - Cadillac DeVille 74-80, Chevrolet C10 C20 75-87, GMC C15 C25 75-78, Pontiac Firebird 74-87 LX301

Ignition Control Module - LX301 Cadillac DeVille 74-80, Chevrolet C10 C20 75-87, GMC C15 C25 75-78, Pontiac Firebird 74-87

Features & Benefits:

Standard manufacturers the highest-quality, best-performing parts for all import and domestic vehicles; gas, diesel, electric and hybrid. Precision manufacturing, multiple layers of testing, and a detailed validation process ensures Standard parts don’t just fit, they perform and they last.

• Standard control modules feature double wire bonds for better connections, greater dependability and longer life despite being subjected to intense vibration and the tough operating environment
• Copper slug heat sinks provide better heat dissipation to prevent heat from damaging the module
• Standard ignition modules will respond to a weak signal from the crankshaft position sensor and begin energising the coils immediately for better starts in cold weather
• High-temperature polymer housing reducing moisture intrusion and minimises vibration damage for extended life and improved reliability
• As a global manufacturer of original equipment ignition products, Standard maintain complete quality control throughout the manufacturing process to finished product

Common Applications Include:

• Buick Apollo (75-74)
• Buick Century (81-74)
• Buick Electra (88-74)
• Buick Estate Wagon (80-74)
• Buick LeSabre (87-74)
• Buick Regal (87-74)
• Buick Riviera (83-81), (79-74)
• Buick Skyhawk (80-75)
• Buick Skylark (82-75)
• Cadillac Calais (76-74)
• Cadillac Commercial Chassis (78-75)
• Cadillac DeVille (80-74)
• Cadillac Eldorado (78-74)
• Cadillac Fleetwood (80-74)
• Cadillac Seville (77-76)
• Checker Marathon (82-75)
• Chevrolet B60 (90-80)
• Chevrolet Bel Air (81), (75-74)
• Chevrolet C10 (86-75)
• Chevrolet C10 Suburban (86-75)
• Chevrolet C20 (87-75)
• Chevrolet C20 Suburban (86-75)
• Chevrolet C30 (86-75)
• Chevrolet C35 (87)
• Chevrolet C50 (90-80), (78-75)
• Chevrolet C60 (90-75)
• Chevrolet C70 (89-80)
• Chevrolet Camaro (87-74)
• Chevrolet Caprice (87-74)
• Chevrolet Celebrity (82)
• Chevrolet Chevette (87-76)
• Chevrolet Citation (82-80)
• Chevrolet Corvette (80-74)
• Chevrolet El Camino (87-74)
• Chevrolet G10 (86-75)
• Chevrolet G20 (86-75)
• Chevrolet G30 (88-75)
• Chevrolet Impala (85-74)
• Chevrolet K10 (86-75)
• Chevrolet K10 Suburban (86-75)
• Chevrolet K20 (86-75)
• Chevrolet K20 Suburban (86-75)
• Chevrolet K30 (86-77)
• Chevrolet K5 Blazer (86-75)
• Chevrolet Laguna (76-74)
• Chevrolet Malibu (83-74)
• Chevrolet Monte Carlo (87-74)
• Chevrolet Monza (80-75)
• Chevrolet Nova (79-74)
• Chevrolet P10 (80-75)
• Chevrolet P20 (89-75)
• Chevrolet P30 (89-75)
• Chevrolet P60 (84-83)
• Chevrolet R20 (88-87)
• Chevrolet R30 (88-87)
• Chevrolet V20 (87)
• Chevrolet V30 (88-87)
• Chevrolet Vega (77-75)
• GMC B6000 (91-80)
• GMC C15 (78-75)
• GMC C15 Suburban (78-75)
• GMC C15/C1500 Pickup (74)
• GMC C15/C1500 Suburban (74)
• GMC C1500 (86-79)
• GMC C1500 Suburban (86-79)
• GMC C25 (78-75)
• GMC C25 Suburban (78-75)
• GMC C25/C2500 Pickup (74)
• GMC C25/C2500 Suburban (74)
• GMC C2500 (86-79)
• GMC C2500 Suburban (86-79)
• GMC C35 (78-75)
• GMC C35/C3500 Pickup (74)
• GMC C3500 (86-79)
• GMC C5000 (83-80)
• GMC C6000 (88-79)
• GMC C7000 (89-80)
• GMC Caballero (86-78)
• GMC G15 (78-75)
• GMC G15/G1500 Van (74)
• GMC G1500 (86-79)
• GMC G25 (78-75)
• GMC G25/G2500 Van (74)
• GMC G2500 (86-79)
• GMC G35 (78-75)
• GMC G35/G3500 Van (74)
• GMC G3500 (88-79)
• GMC Jimmy (86-74)
• GMC K15 (78-75)
• GMC K15 Suburban (78-75)
• GMC K15/K1500 Pickup (74)
• GMC K1500 (86-79)
• GMC K1500 Suburban (86-79)
• GMC K25 (78-75)
• GMC K25 Suburban (78-75)
• GMC K25/K2500 Pickup (74)
• GMC K25/K2500 Suburban (74)
• GMC K2500 (86-79)
• GMC K2500 Suburban (86-79)
• GMC K35 (78-77)
• GMC K35/K3500 Pickup (74)
• GMC K3500 (86-79)
• GMC P15 (78-75)
• GMC P15/P1500 Van (74)
• GMC P1500 (80-79)
• GMC P25 (78-75)
• GMC P25/P2500 Van (74)
• GMC P2500 (89), (87-79)
• GMC P35 (78-75)
• GMC P35/P3500 Van (74)
• GMC P3500 (92), (90-79)
• GMC R2500 (88-87)
• GMC R3500 (88-87)
• GMC Sprint (77-74)
• GMC V2500 (87)
• GMC V3500 (88-87)
• Jeep CJ5 (81-80)
• Jeep CJ7 (81-80)
• Jeep Scrambler (81)
• Lancia Beta (81), (79-76)
• Oldsmobile 98 (84-81), (79-74)
• Oldsmobile Custom Cruiser (85), (82), (79-74)
• Oldsmobile Cutlass (81-74)
• Oldsmobile Cutlass Calais (84-78)
• Oldsmobile Cutlass Ciera (82)
• Oldsmobile Cutlass Cruiser (83-82), (80)
• Oldsmobile Cutlass Salon (87-85), (80-75)
• Oldsmobile Cutlass Supreme (87-82), (80-74)
• Oldsmobile Cutlass Tiara (76)
• Oldsmobile Delta 88 (85-74)
• Oldsmobile Omega (82-74)
• Oldsmobile Starfire (80-75)
• Oldsmobile Toronado (81), (79), (77-74)
• Oldsmobile Vista Cruiser (75-74)
• Peugeot 505 (83-80)
• Peugeot 604 (80-77)
• Pontiac 6000 (82)
• Pontiac Acadian (87-82), (79-76)
• Pontiac Astre (77-75)
• Pontiac Bonneville (86-74)
• Pontiac Catalina (81-74)
• Pontiac Firebird (87-74)
• Pontiac Grand Am (80-78), (75-74)
• Pontiac Grand LeMans (83-75)
• Pontiac Grand Prix (87-74)
• Pontiac Grand Safari (78-74)
• Pontiac Grandville (75-74)
• Pontiac Laurentian (81), (79-76), (74)
• Pontiac LeMans (81-74)
• Pontiac Parisienne (86-76), (74)
• Pontiac Phoenix (82-77)
• Pontiac Safari (87)
• Pontiac Sunbird (80-76)
• Pontiac T1000 (87-82)
• Pontiac Ventura (77-75)

Product Specifications:

• Grade Type: Regular
• Voltage: 12
• Connector Quantity: 2
• Connector Gender: Female
• Terminal Quantity: 4
• Terminal Gender: Male
• Terminal Type: 4 Blade Terminals
• Mounting Location: Inside Distributor
