Load Adjusting Shocks/Coil Assy Ford Galaxie 65-74 Ranchero 72-79 Torino 72-76 58263**
Load Adjusting Shocks/Coil Assy Ford Galaxie 65-74 Ranchero 72-79 Torino 72-76 58263**
Regular price
£143.50 GBP
Regular price
Sale price
£143.50 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Part Number + Internal Code
Part Number + Internal Code
58263
Specification
Specification
Colour
- Black
Material
Fitment
Condition
- New
Manufacturer Type
- Aftermarket
Manufacturers Site (links off site):
Load Adjusting Shocks/Coil Assy Ford Galaxie 65-74 Ranchero 72-79 Torino 72-76 58263**
**Please note that this item is shipped from our USA supplier on order. Typically it arrives at your door within 7-10 Days.
Fitment:- FRONT
Product Description

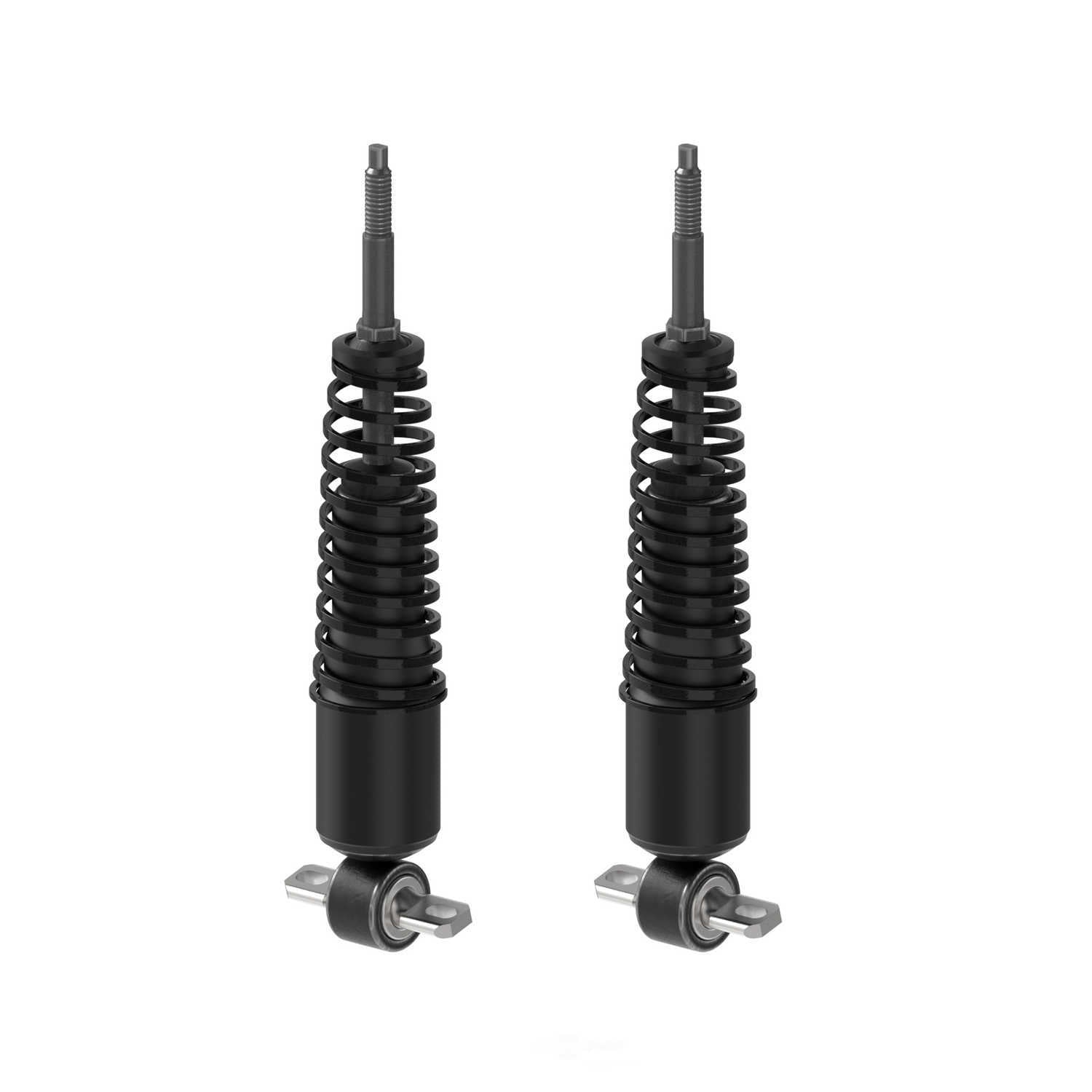

Load Adjusting Suspension Shock Absorber and Coil Spring Assembly Pack of 2
Features & Benefits
- REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
- EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
Product Attributes
| Lower Mount Code | XP4 |
| Upper Mount Code | S4 |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Parts Pack(s) | P01134 |
| Part Description | Shock Absorber and Coil Spring Assembly |
| Compressed Length | 9.12 IN |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Extended Length | 13.8 in |
| Internal Rebound Bumper | Yes |
| Lower Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center) |
| Travel Length | 4.625 IN |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 231.8 MM |
| Extended Length | 349.3 MM |
| Travel Length | 4.625 in |
| Travel Length | 117.5 MM |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Damping Type | Oil |
| Grade Type | Premium |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Fitment Details:-
| Buick Electra (1971-1989) |
| Buick Estate Wagon (1971-1983) |
| Buick LeSabre (1971-1990) |
| Buick Riviera (1971-1978) |
| Buick Roadmaster (1991-1996) |
| Cadillac Brougham (1987-1992) |
| Cadillac Commercial Chassis (1977-1996) |
| Cadillac DeVille (1977-1984) |
| Cadillac Fleetwood (1977-1986, 1993-1996) |
| Chevrolet Bel Air (1965-1975, 1981) |
| Chevrolet Biscayne (1965-1972) |
| Chevrolet Camaro (1970-1981) |
| Chevrolet Caprice (1966-1996) |
| Chevrolet Impala (1965-1985) |
| Ford Country Squire (1987-1991) |
| Ford Custom (1965-1972) |
| Ford Custom 500 (1965-1977) |
| Ford Galaxie (1965-1967) |
| Ford Galaxie 500 (1965-1974) |
| Ford Gran Torino (1972-1976) |
| Ford LTD (1967-1986) |
| Ford LTD Crown Victoria (1987-1991) |
| Ford LTD II (1977-1979) |
| Ford Ranchero (1972-1979) |
| Ford Thunderbird (1967-1979) |
| Ford Torino (1972-1976) |
| Lincoln Continental (1970-1980) |
| Lincoln Mark III (1968-1971) |
| Lincoln Mark IV (1972-1976) |
| Lincoln Mark V (1977-1979) |
| Lincoln Mark VI (1980-1983) |
| Lincoln Town Car (1981-1991) |
| Mercury Colony Park (1965-1974, 1987-1991) |
| Mercury Cougar (1974-1979) |
| Mercury Cyclone (1965-1967) |
| Mercury Grand Marquis (1975-1991) |
| Mercury Marauder (1965-1970) |
| Mercury Marquis (1967-1982) |
| Mercury Montego (1972-1976) |
| Mercury Monterey (1965-1974) |
| Mercury Park Lane (1966-1968) |
| Oldsmobile 98 (1971-1984) |
| Oldsmobile Custom Cruiser (1971-1992) |
| Oldsmobile Delta 88 (1971-1985) |
| Pontiac Bonneville (1971-1981) |
| Pontiac Catalina (1971-1981) |
| Pontiac Firebird (1970-1981) |
| Pontiac Grand Safari (1971-1978) |
| Pontiac Grandville (1971-1975) |
| Pontiac Laurentian (1971-1974, 1976-1981) |
| Pontiac Parisienne (1971-1974, 1976-1986) |
| Pontiac Safari (1987-1989) |
