PCD Measuring Tool

PCD Measuring Tool

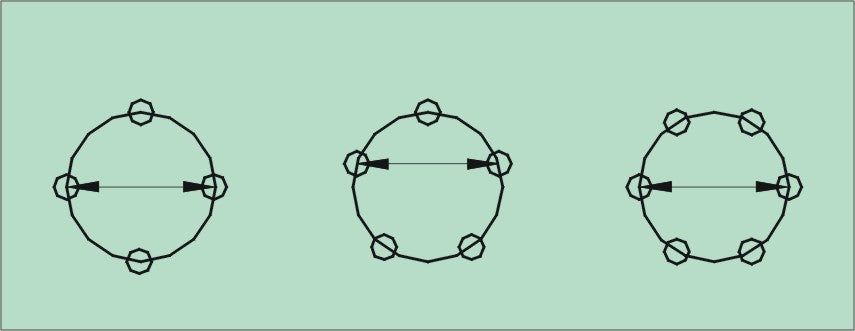

Fits all common 4 & 5 stud patterns from 3 3/4" to 6 "

Mesures studs or holes

Features & Benefits:

• The tool is made from glass filled nylon and will not rust if left in the bottom of a tool box. It is both small and light and will not bend or break.
• The scale is moulded into the plastic so there is no chance of it slipping as the adhesive ages.

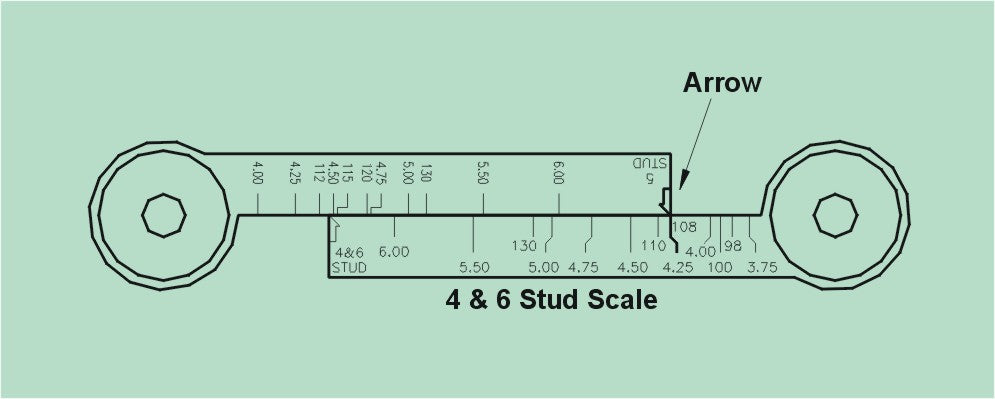

• The PCD tool only contains 2 parts - one 4 & 6 stud scale and one 5 stud scale. Other than the scale the parts are identical.

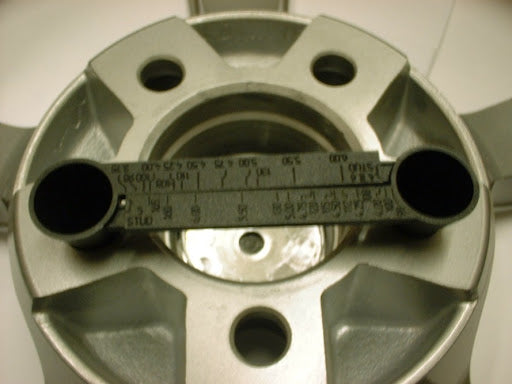

• The scale is within the PCD means it will measure rims as small as 5" 127mm inside rim, making the tool useful for finding trailer wheels as well as any full size car and caravan wheels.
• The cone ends allows you to find the centre of the bolt hole with ease and find a PCD from the studs protruding from early type axles by using the hollow of the cone.
