Top Street Performance
Distributor - Chevy SB/BB V8 Ready to Run JM6701BK
Distributor - Chevy SB/BB V8 Ready to Run JM6701BK
Couldn't load pickup availability
Part Number + Internal Code
Part Number + Internal Code
JM6701BK / 910-6701
080 02 000
Specification
Specification
Colour
Material
Fitment
Condition
Manufacturer Type
Manufacturers Site (links off site): topstreetperformance.com/products/chevy-sb-bb-v8-ready-to-run-distributor-black?_pos=1&_sid=014af94cf&_ss=r

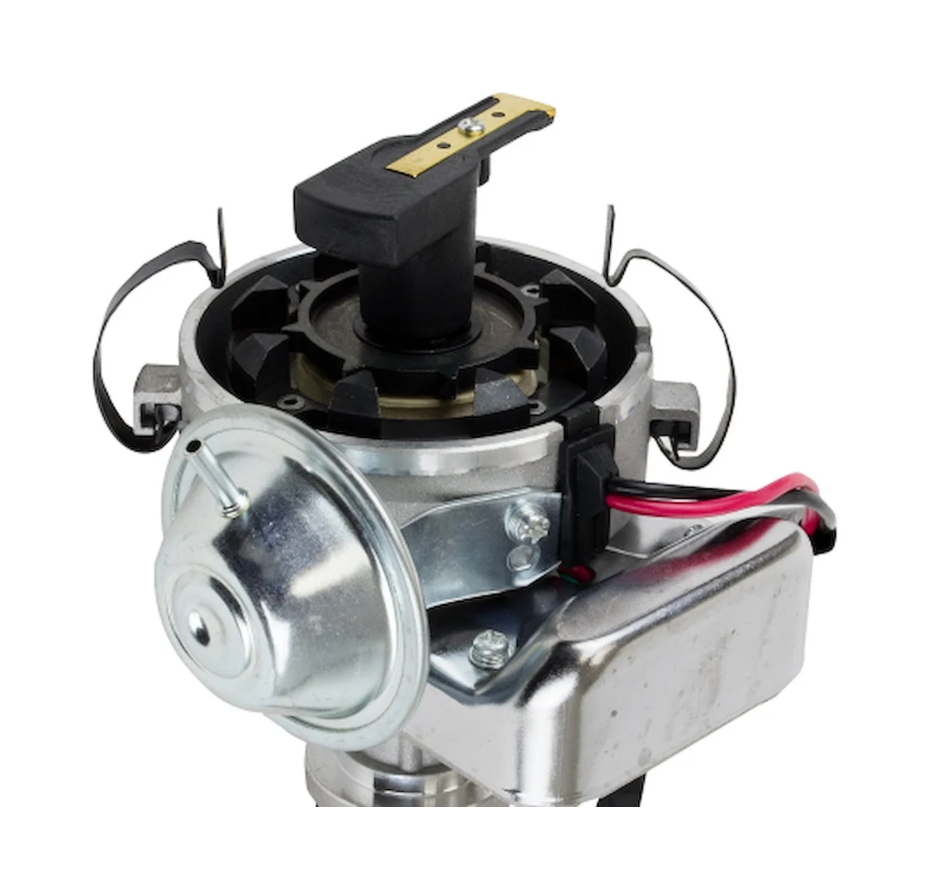

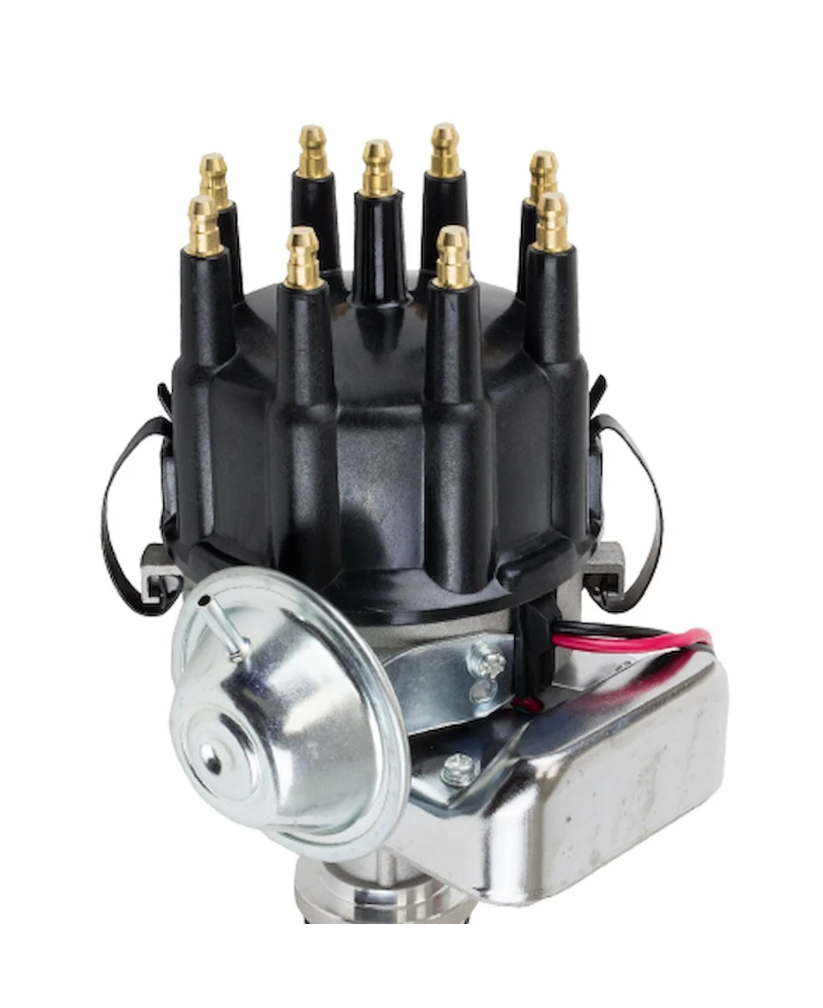

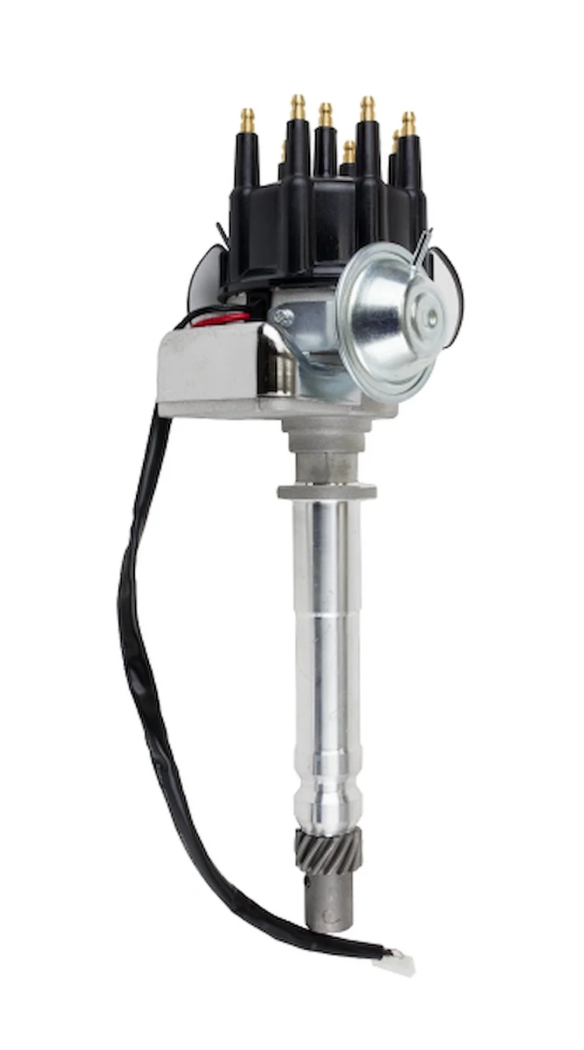

Distributor - Chevy SB/BB V8 Ready to Run JM6701BK
Features & Benefits:
TSP’s Ready to Run distributor is designed for easy installation. With the included ignition module, all you'll need to complete your set-up is a coil. Using simple design elements throughout, it's a great way to get an easy-to-install ignition at an affordable price. With an aluminum housing, steel internal construction, and a high-quality ignition module, this distributor will get the job done.
This distributor is designed for a 12-volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor
- Compact design with clip-on cap
- On-board ignition control module
- Fits small block 262-400 and big block Mark IV 396-454
Common Applications Include:
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
- 6.5 L / 396 in3
- 6.6 L / 402 in3
- 7.4 L / 454 in3
CHEVROLET SMALL BLOCK V8 GEN. I
- 4.3 L / 262 in3
- 4.3 L / 265 in3
- 4.4 L / 267 in3
- 4.6 L / 283 in3
- 4.9 L / 302 in3
- 5.0 L / 305 in3
- 5.0 L / 307 in3
- 5.4 L / 327 in3
- 5.7 L / 350 in3
- 6.6 L / 400 in3
Product Specifications:
| Trigger Type | Multi-Pole Reluctor (Halls Effect) |
| Advance Type | Mechanical And Vacuum |
| Terminal Gender | Male |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Coil Included | No |
| Coil Type | External |
| Recommended Coil Output | 35,000+ V |
| Gear Material | Steel |
| Housing Material | Aluminum |
| Ignition Box Required | No |
| Marine Use | No |
| Cylinders | 8 |
