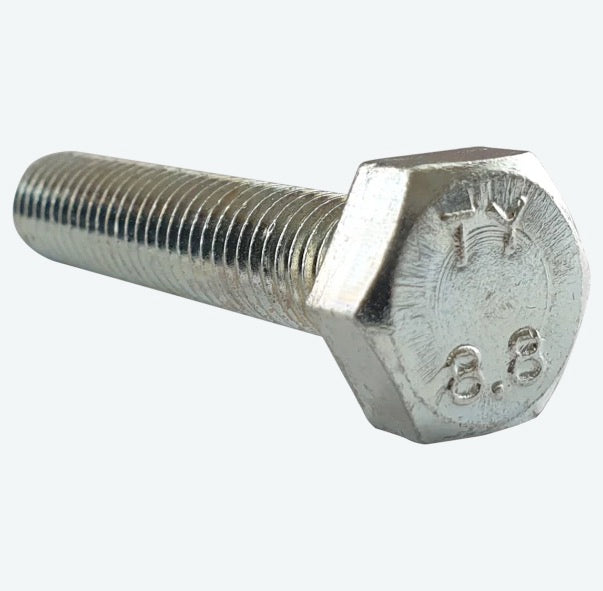

UNF 5/16″ Hex Set Screw (Fully Threaded Bolt) Zinc Plated Grade 8.8 / 5

UNF 5/16″ Hex Set Screw (Fully Threaded Bolt)  Zinc Plated Grade 8.8 / 5

5/16 UNF hex set screw manufactured with a bright zinc plating (BZP) offering a mid-level corrosion resistance.

Select from the sizes available.

As used in the Belchers Workshop for vehicle restorations.

Unlike hexagon bolts, which are partially threaded, the hex head set screw has a fine thread extending up to the underside of the head. This ensures a secure and tight fixing every time without the worry of running out of thread.

Also known as a ‘fully threaded bolt’, the hex head also allows for higher torque to be applied with a range of conventional tools making them a versatile choice.

5/16 UNF set screw specification

• Thread diameter (TD): 5/16″ UNF

• Head height (HH): 0.23″ max
• Head width (HW): 0.50″ max
• Thread Pitch (TP): 24 (threads per inch)
• Material: Bright zinc plated steel (BZP)
• Conformity: BS 1768
