Stabilus
Liftgate Lift Support - 1F-061463
Liftgate Lift Support - 1F-061463
Regular price
£0.20 GBP
Regular price
£0.00 GBP
Sale price
£0.20 GBP
Unit price
/
per
Tax included.
We have 2 in stock
Couldn't load pickup availability
Part Number + Internal Code
Part Number + Internal Code
1F-061463
Pegs
Specification
Specification
Colour
Material
Fitment
Condition
Manufacturer Type
Manufacturers Site (links off site):

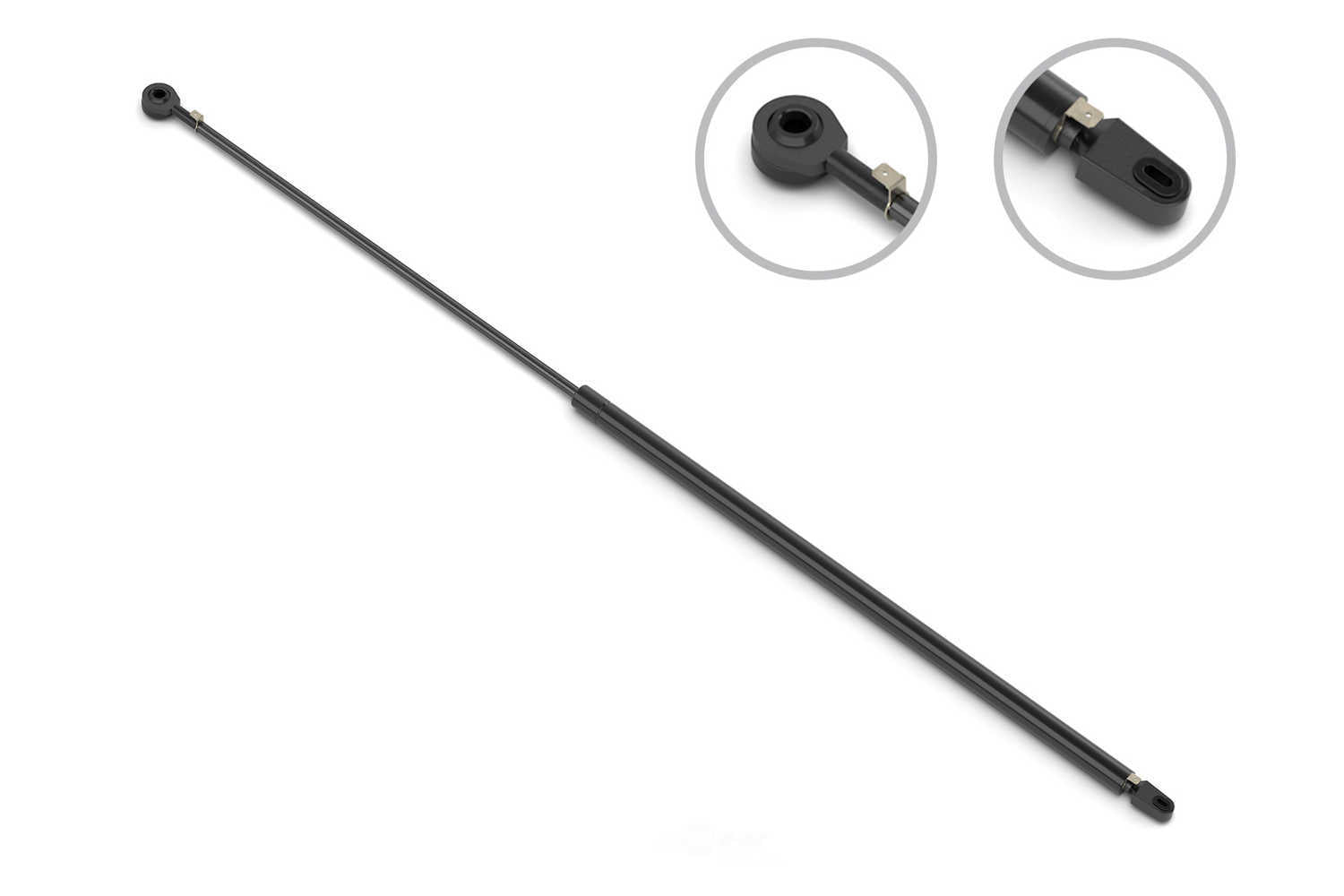

Liftgate Lift Support - 1F-061463
Features & Benefits:
- Rust-resistant piston rod extends product life
- Smooth operation in all temperature extremes (between -20°F (-30°C) and 176°F (+80°C))
- Consistent lifting force through 50,000 cycles
- Linear spring characteristics for continuous application of force across the entire range of movement
Common Applications Include:
| Make | Model | Year Range |
| Chevrolet | Camaro | 1982-1992 |
| Pontiac | Firebird | 1982-1992 |
Product Specifications:
| Compressed Length (in) | 28.839 |
| Compressed Length (mm) | 732.5 |
| Extended Length (in) | 39.094 |
| Extended Length (mm) | 993 |
| Force (N) | 600 |
| Force (lbs) | 135 |
| Hardware Kit | No |
| Rod Connection | Metal Blade |
| Rod Dia (in) | 0.394 |
| Rod Diameter (mm) | 10 |
| Rod End Attachment Dia (in) | 0.524 |
| Rod End Attachment Dia (mm) | 13.3 |
| Shaft Connection | Metal Blade |
| Tube connection | Metal Blade |
| Tube Dia (in) | 0.866 |
| Tube Diameter (mm) | 22 |
