ACDelco

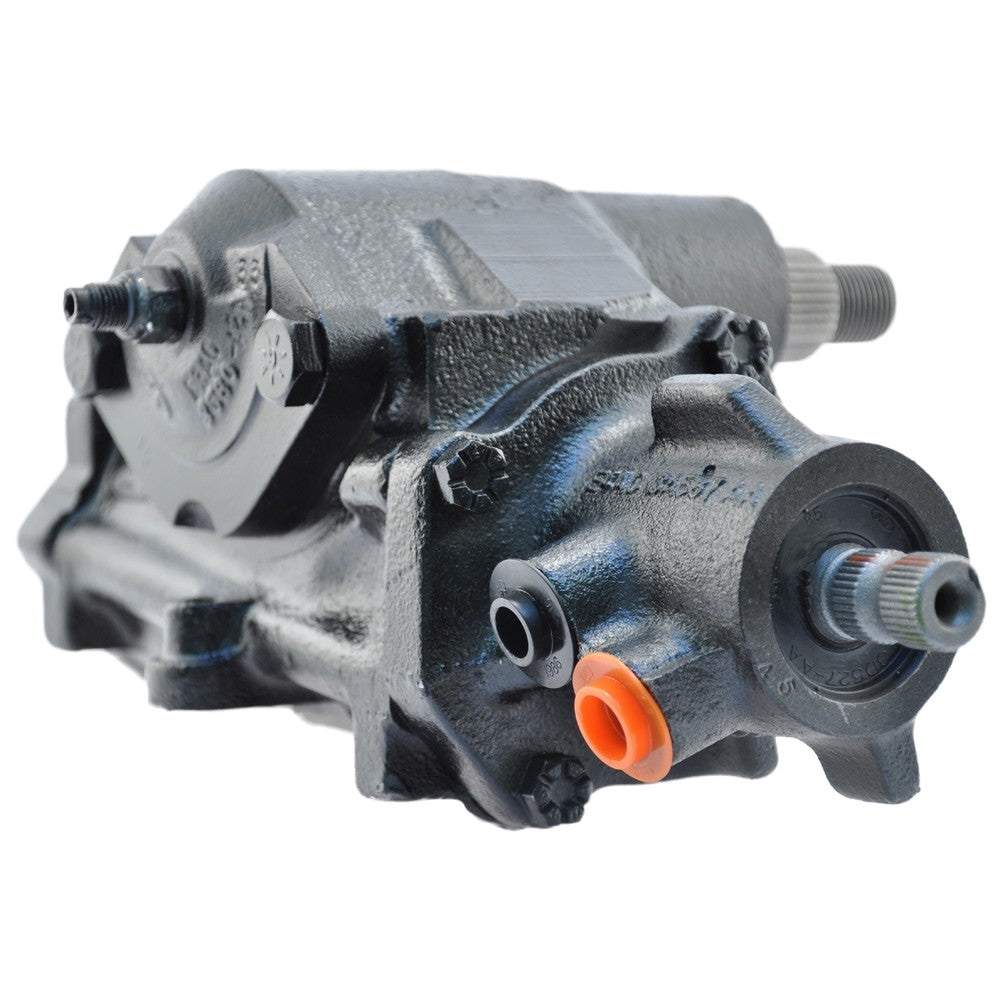

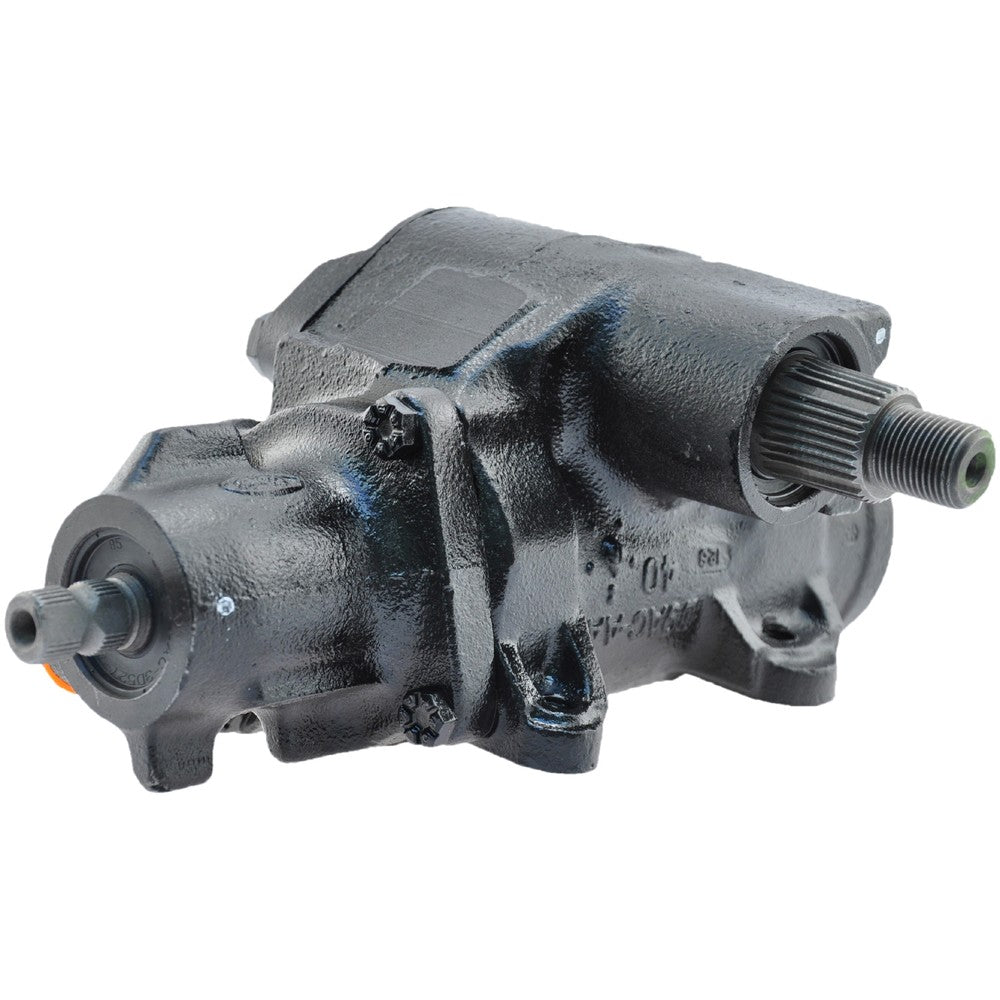

Steering Gear - 36-0817516

Steering Gear - 36-0817516

£178.56 GBP
£178.36 GBP £178.56 GBP
Sale Sold out
Tax included.
We have 1 in stock

Part Number + Internal Code

36-0817516 / 36G0031

069 01 000

Specification

Colour

Material

Fitment

Condition

Manufacturer Type

Manufacturers Site (links off site):

Steering Gear - 36-0817516

Features & Benefits:

  • Gear housings are bead blasted, thoroughly washed, closely inspected, and rust-proofed prior to assembly to minimize corrosion
  • Multiple cleaning and washing stations, with regular contamination audits, for every component inside the rack and pinion minimize internal contamination and increase part service life
  • All seals and O-rings are replaced with 100% new parts to extend the life of the product, helping to guarantee reliability
  • Sealing surfaces are restored and polished to maximize sealing and help ensure long service life
  • Recirculating bearings are replaced with new and matched sets to provide correct steering feel and performance

Product Specifications:

  • Height: 7.12 in
  • Width: 9.88 in
  • Length: 15.56 in
  • Input Shaft Diameter: 0.72 in
  • Input Shaft Spline Quantity: 29
  • Mounting Hole Quantity: 3
  • Output Shaft Diameter: 1.37 in
  • Output Shaft Spline Quantity: 32
  • Port 1 Thread Diameter: 0.5 in
  • Port 2 Thread Diameter: 0.625 in
  • Power Assisted: Yes
  • Programming Required: No
  • Total Turns Lock To Lock: 4.062
