Leakless Water Pump Ford Model A 1930-31 A-8502-B

Leakless Water Pump - A-8502-B

Ford Model A 1930-1931

The heaviest duty pump available

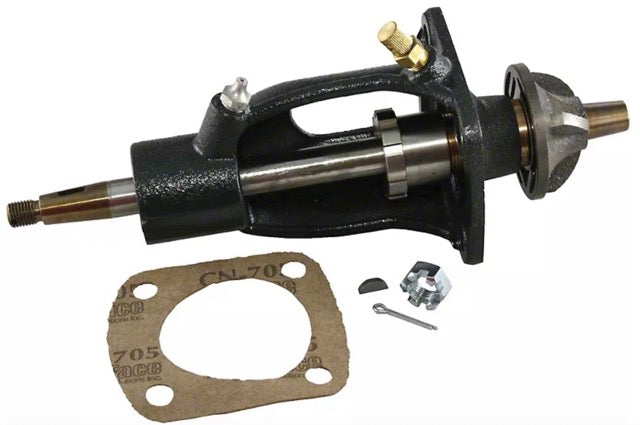

Has been bored out to accept a sealed ball bearing in place of the old original roller bearing that is pressed onto the shaft to eliminate end play. It also has a sealed rear bushing assembly with a stock pack nut. The pack nut contains graphite packing as a back up.

• Comes with a gasket and fan mounting kit
• The impeller is the cut down version
• Rear bushing requires grease
• 4-bolt design
• Stainless steel pack nut resembles the original zinc nut for 1930-31's

Please Note: The end float of the pump shaft is governed by the clearance between the shaft (impeller end) and the inside of the cylinder head. If this is badly worn use locking collar A-8511-C to maintain end float.
